R18N38
R18N38

R18N38

UGC PRE5998396
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.93 CAD - $1.93 CAD
$1.93 CAD
$1.93 CAD - $1.93 CAD
$1.93 CAD

Vendu en lots de : 12

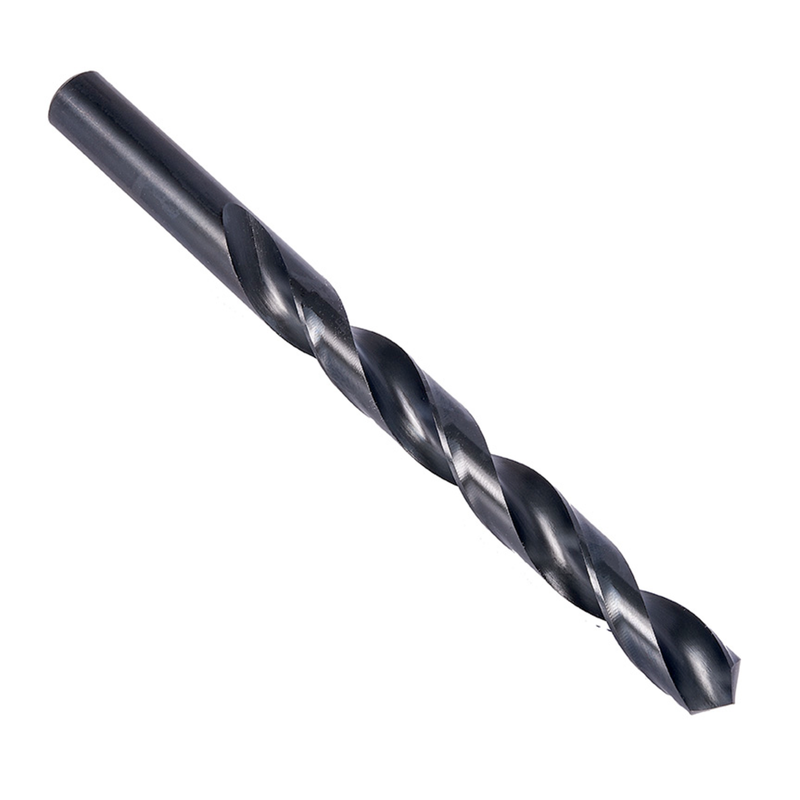

Foret série courte à queue cylindrique, diamètre 0,1015" (N38) d'une longueur totale de 2.1/2" et d'une longueur de coupe de 1.7/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition revenu vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18N38
GradeTrempé à la vapeur
Product Number5998396
Product FamilyR18
Dimensions
Cutting Diameter — in (DC)0.1015"
Cutting Diameter — mm (DC)2.58 mm
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Flute Length — in (LCF)1.4375"
Flute Length — mm (LCF)36.51 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1015"
Connection Dia. — mm (DCON)2.58 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18038
File Type Download
R18N38 — 3D Model STP Download
R18N38 — Line Drawing PDF Download
