R18HN9
R18HN9

R18HN9

UGC PRE5998447
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.66 CAD - $4.66 CAD
$4.66 CAD
$4.66 CAD - $4.66 CAD
$4.66 CAD

Vendu en lots de : 12

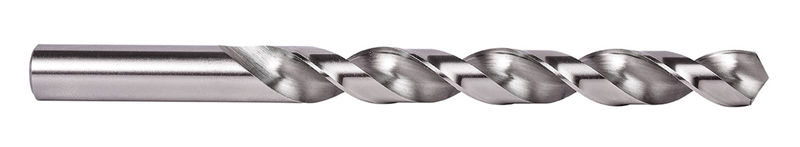

Foret de longueur Jobber à queue droite, diamètre 0,1960" (N9) avec une longueur totale de 3.5/8" et une longueur de coupe de 2.7/16" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour le perçage 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R18HN9
GradeLumineux
Product Number5998447
Product FamilyR18H
Dimensions
Cutting Diameter — in (DC)0.196"
Cutting Diameter — mm (DC)4.98 mm
Overall Length — in (OAL)3.625"
Overall Length — mm (OAL)92.08 mm
Flute Length — in (LCF)2.4375"
Flute Length — mm (LCF)61.91 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.196"
Connection Dia. — mm (DCON)4.98 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number18509
File Type Download
R18HN9 — 3D Model STP Download
R18HN9 — Line Drawing PDF Download
