R10P1/2
R10P1/2
R10P1/2

R10P1/2

UGC PRE5998502
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.37 CAD - $14.37 CAD
$14.37 CAD
$14.37 CAD - $14.37 CAD
$14.37 CAD

Vendu en lots de : 6

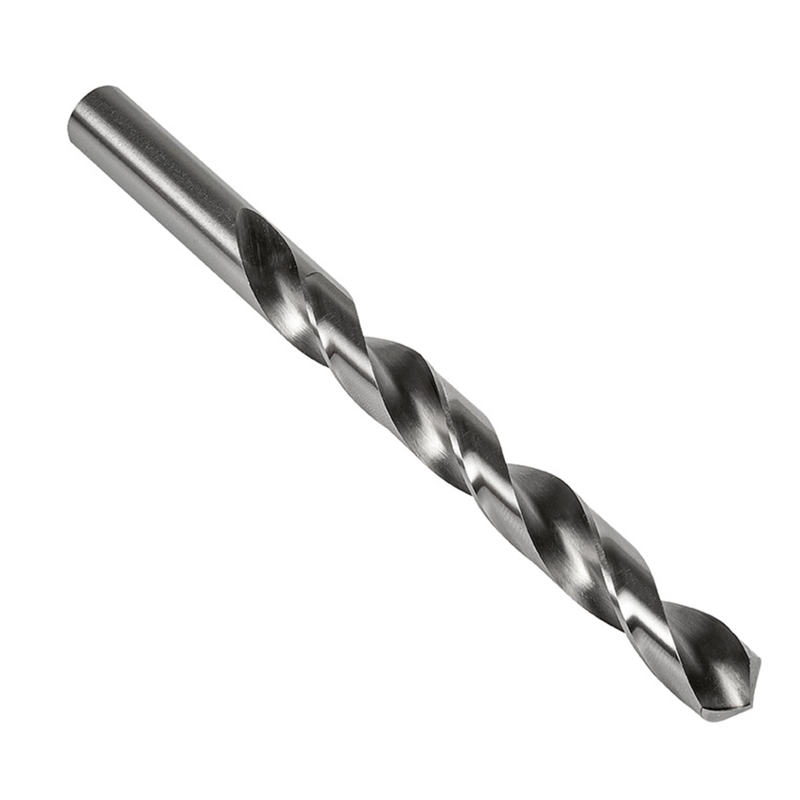

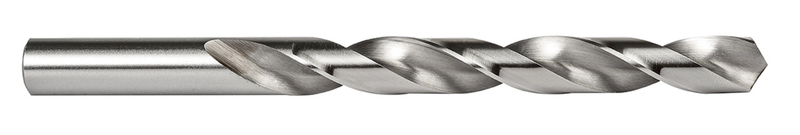

Foret hélice normale, queue cylindrique, diamètre 0,5000" (1/2), longueur totale 6" et longueur des lèvres 4,1/2" selon la norme ANSI, angle de pointe 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10P1/2
GradeLumineux
Product Number5998502
Product FamilyR10P

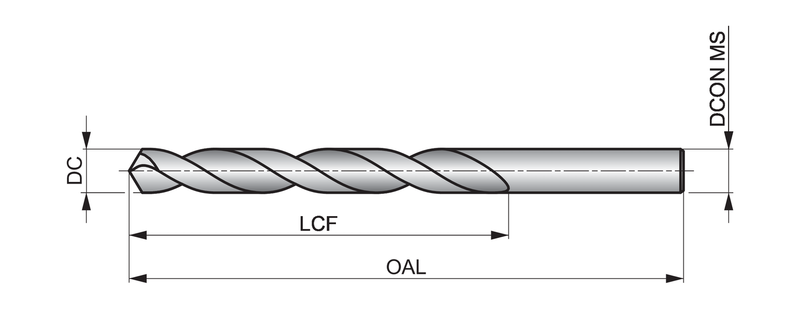

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10632
File Type Download
R10P1/2 — 3D Model STP Download
R10P1/2 — Line Drawing PDF Download
