R401.1/16
R401.1/16
R401.1/16

R401.1/16

UGC PRE5998505
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$123.46 CAD - $123.46 CAD
$123.46 CAD
$123.46 CAD - $123.46 CAD
$123.46 CAD

Vendu en lots de : 1

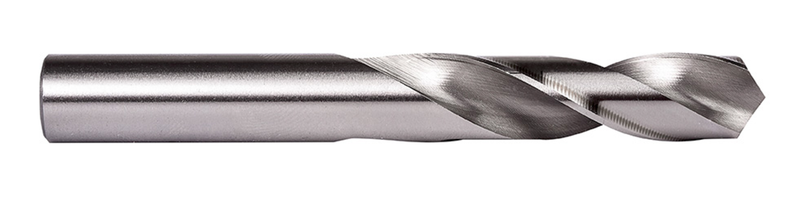

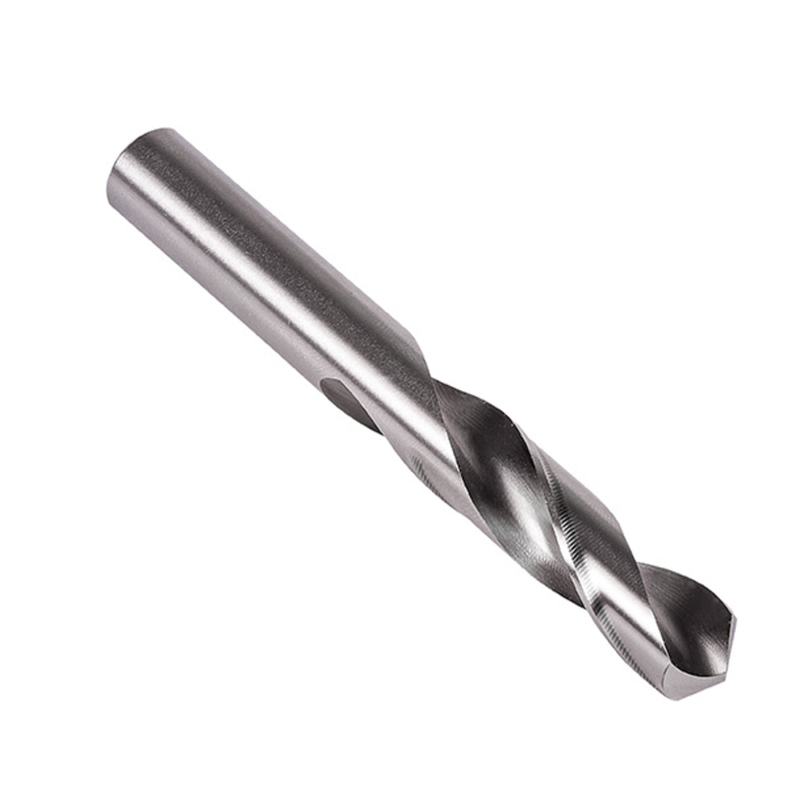

Foret court avec queue cylindrique réduite de 1", diamètre 1,0625" (1.1/16) avec une longueur totale de 6.1/4" et une longueur de goujure de 4" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour le perçage 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R401.1/16
GradeTrempé à la vapeur
Product Number5998505
Product FamilyR40
Dimensions
Cutting Diameter — in (DC)1.0625"
Cutting Diameter — mm (DC)26.99 mm
Cutting Diameter — Fractional1,1/16
Overall Length — in (OAL)6.25"
Overall Length — mm (OAL)158.75 mm
Flute Length — in (LCF)4.0"
Flute Length — mm (LCF)101.6 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)1.0625"
Connection Dia. — mm (DCON)26.99 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number40604
File Type Download
R401.1/16 — 3D Model STP Download
R401.1/16 — Line Drawing PDF Download
