R4049/64
R4049/64
R4049/64

R4049/64

UGC PRE5998518
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.21 CAD - $64.21 CAD
$64.21 CAD
$64.21 CAD - $64.21 CAD
$64.21 CAD

Vendu en lots de : 1

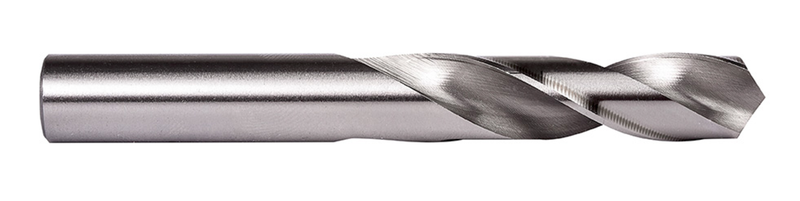

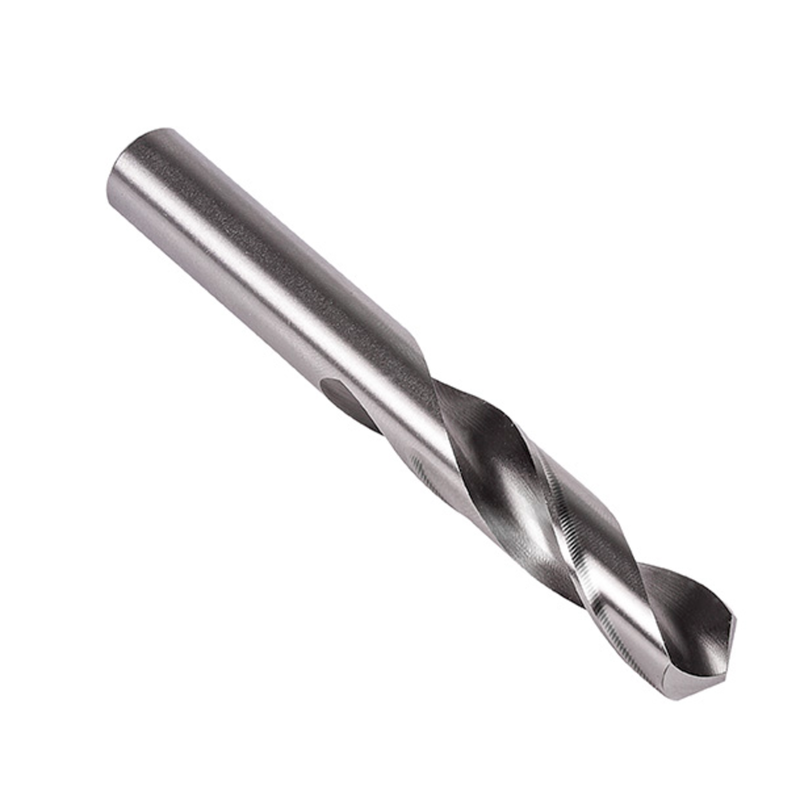

Foret court à queue cylindrique, diamètre 0,7656" (49/64) avec une longueur totale de 5,1/8" et une longueur de goujure de 3,1/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4049/64
GradeTrempé à la vapeur
Product Number5998518
Product FamilyR40
Dimensions
Cutting Diameter — in (DC)0.7656"
Cutting Diameter — mm (DC)19.45 mm
Cutting Diameter — Fractional49/64
Overall Length — in (OAL)5.125"
Overall Length — mm (OAL)130.18 mm
Flute Length — in (LCF)3.25"
Flute Length — mm (LCF)82.55 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.7656"
Connection Dia. — mm (DCON)19.45 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number40549
File Type Download
R4049/64 — 3D Model STP Download
R4049/64 — Line Drawing PDF Download
