R10H23/64
R10H23/64
R10H23/64

R10H23/64

UGC PRE5998524
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.01 CAD - $14.01 CAD
$14.01 CAD
$14.01 CAD - $14.01 CAD
$14.01 CAD

Vendu en lots de : 6

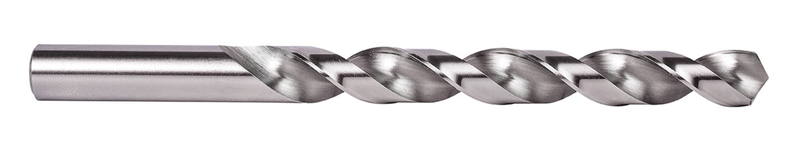

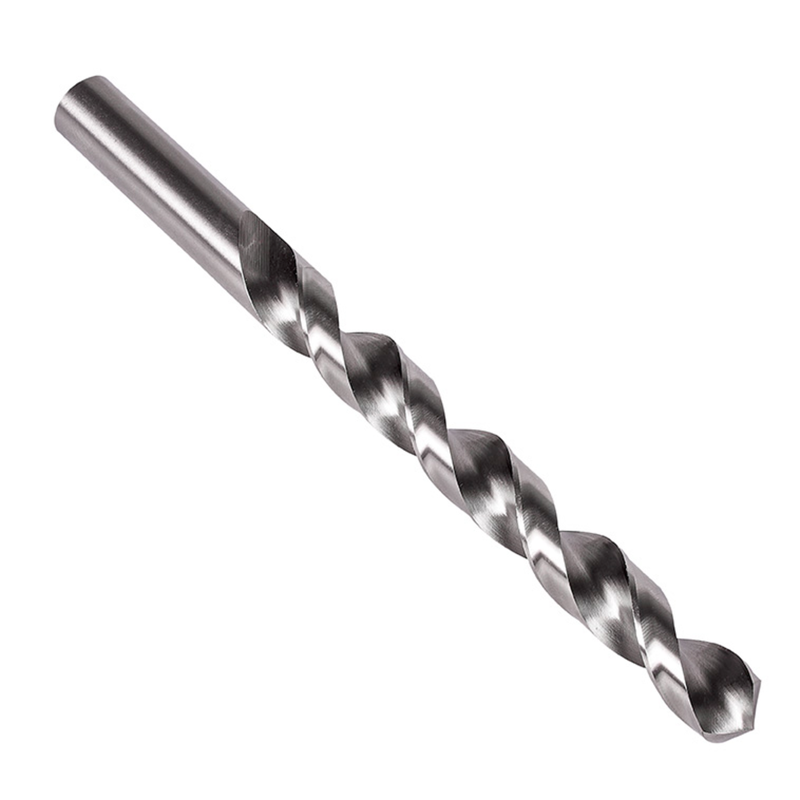

Foret série courte à queue cylindrique, diamètre 0,3594" (23/64) avec une longueur totale de 4,7/8" et une longueur de coupe de 3,1/2" selon la norme ANSI avec un angle de pointe de 118°, en HSS finition brillante pour un perçage 4xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R10H23/64
GradeLumineux
Product Number5998524
Product FamilyR10H
Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)4.875"
Overall Length — mm (OAL)123.83 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10523
File Type Download
R10H23/64 — 3D Model STP Download
R10H23/64 — Line Drawing PDF Download
