R401.3/16
R401.3/16
R401.3/16

R401.3/16

UGC PRE5998536
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$139.20 CAD - $139.20 CAD
$139.20 CAD
$139.20 CAD - $139.20 CAD
$139.20 CAD

Vendu en lots de : 1

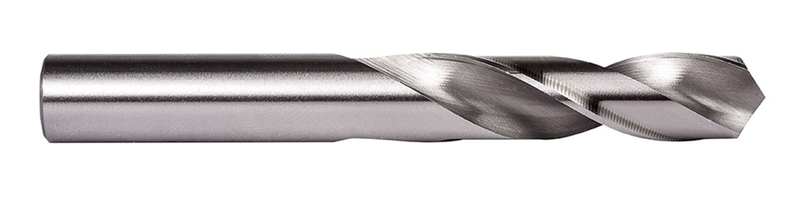

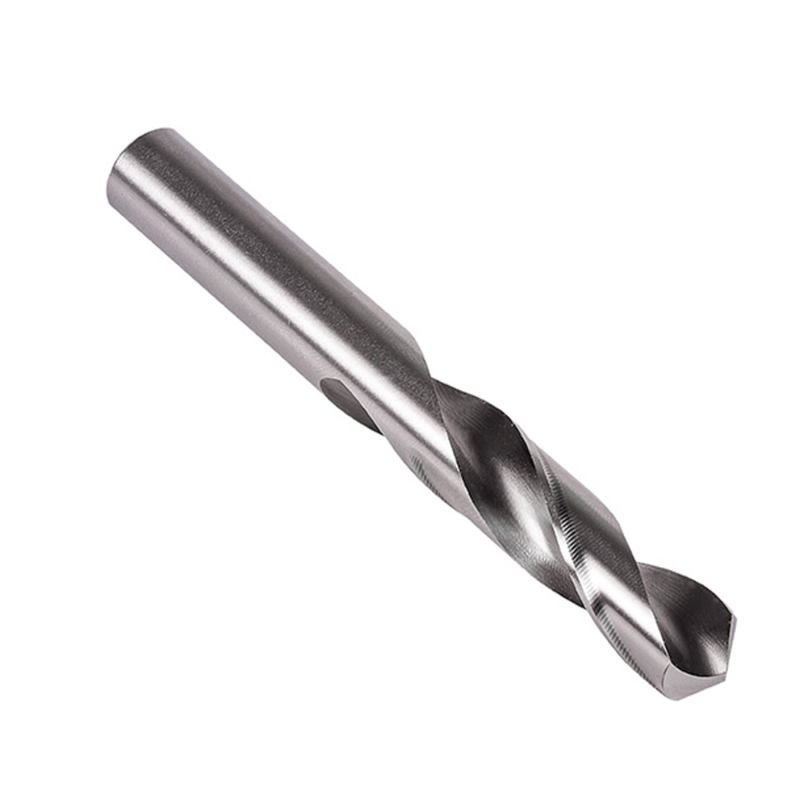

Foret étagé à queue cylindrique réduite 1", diamètre 1.1875" (1.3/16) avec une longueur totale de 6.5/8" et une longueur de goujure de 4.1/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage de 2.5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)R401,3/16
Product Name (ISO)R401.3/16
GradeTrempé à la vapeur
Product Number5998536
Product FamilyR40
Dimensions
Cutting Diameter — in (DC)1.1875"
Cutting Diameter — mm (DC)30.16 mm
Cutting Diameter — Fractional1,3/16
Overall Length — in (OAL)6.625"
Overall Length — mm (OAL)168.28 mm
Flute Length — in (LCF)4.25"
Flute Length — mm (LCF)107.95 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)1.1875"
Connection Dia. — mm (DCON)30.16 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number40612
File Type Download
R401.3/16 — 3D Model STP Download
R401.3/16 — Line Drawing PDF Download
