UGC PRE5998568
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$96.53 CAD - $96.53 CAD
$96.53 CAD
$96.53 CAD - $96.53 CAD
$96.53 CAD

Vendu en lots de : 1

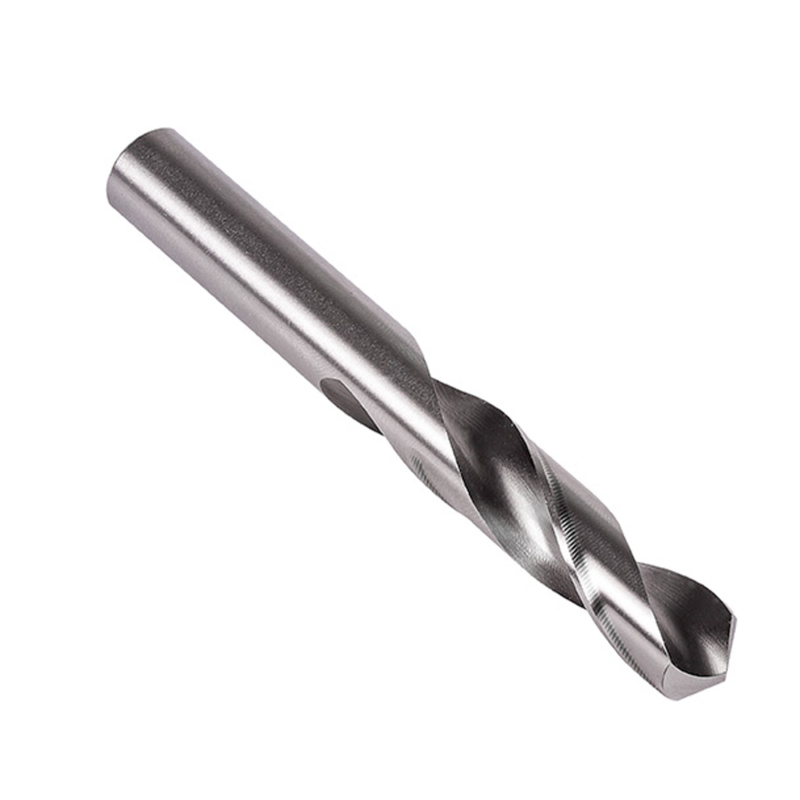

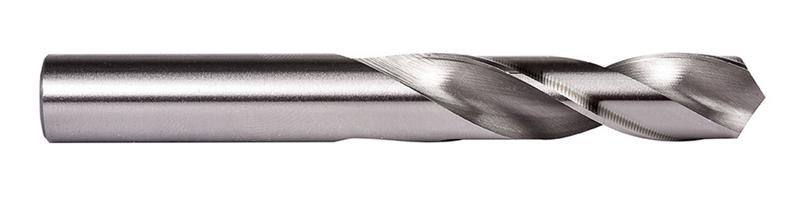

Foret court à queue droite, diamètre 0,9844" (63/64) avec une longueur totale de 6" et une longueur de coupe de 4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage de 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4063/64
GradeTrempé à la vapeur
Product Number5998568
Product FamilyR40
Dimensions
Cutting Diameter — in (DC)0.9844"
Cutting Diameter — mm (DC)25.0 mm
Cutting Diameter — Fractional63/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)4.0"
Flute Length — mm (LCF)101.6 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.9844"
Connection Dia. — mm (DCON)25.0 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number40563
File Type Download
R4063/64 — 3D Model STP Download
R4063/64 — Line Drawing PDF Download
