R41CN10
R41CN10

R41CN10

UGC PRE5998597
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.10 CAD - $3.10 CAD
$3.10 CAD
$3.10 CAD - $3.10 CAD
$3.10 CAD

Vendu en lots de : 12

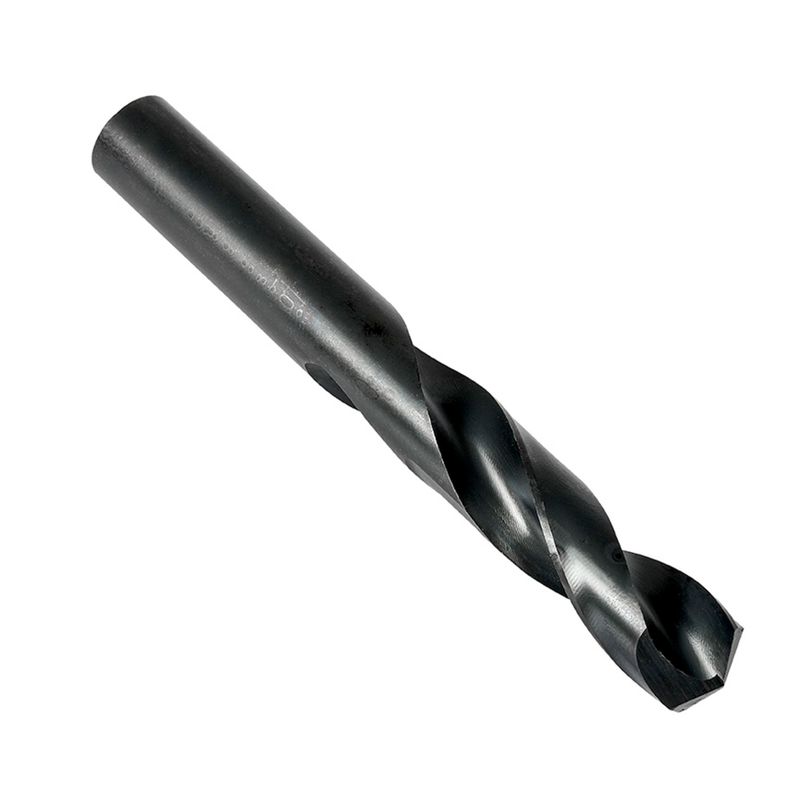

Foret court à queue droite, diamètre 0,1935" (N10) avec une longueur totale de 2,1/4" et une longueur de coupe de 1,3/16" selon la norme NAS907 Type C avec pointe fendue à 135° pour usage intensif, en HSS avec finition trempée à la vapeur pour perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R41CN10
GradeTrempé à la vapeur
Product Number5998597
Product FamilyR41C
Dimensions
Cutting Diameter — in (DC)0.1935"
Cutting Diameter — mm (DC)4.91 mm
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)1.1875"
Flute Length — mm (LCF)30.16 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1935"
Connection Dia. — mm (DCON)4.91 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number41810
File Type Download
R41CN10 — 3D Model STP Download
R41CN10 — Line Drawing PDF Download
