R4013/16
R4013/16
R4013/16

R4013/16

UGC PRE5998602
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.46 CAD - $65.46 CAD
$65.46 CAD
$65.46 CAD - $65.46 CAD
$65.46 CAD

Vendu en lots de : 1

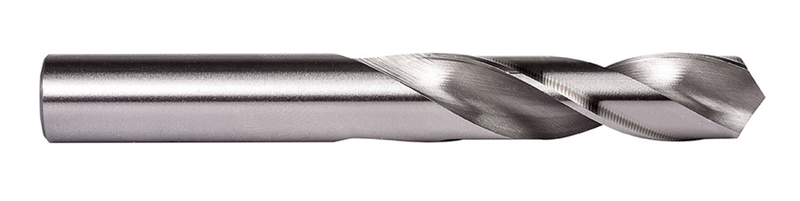

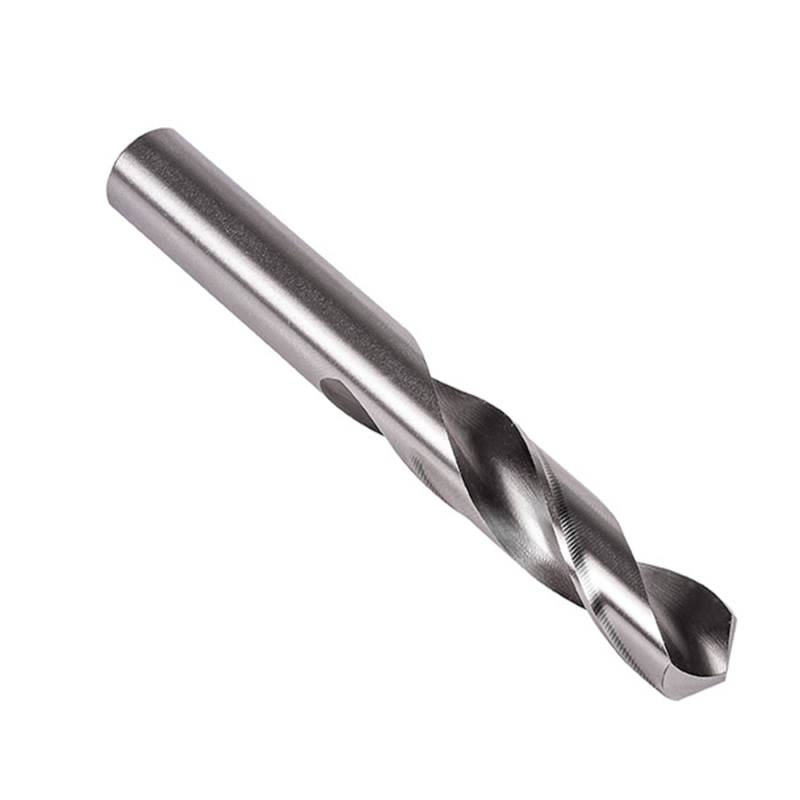

Foret court à queue cylindrique, diamètre 0,8125" (13/16) avec une longueur totale de 5.1/4" et une longueur de goujure de 3.3/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS finition brillante pour un perçage 2.5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4013/16
GradeTrempé à la vapeur
Product Number5998602
Product FamilyR40
Dimensions
Cutting Diameter — in (DC)0.8125"
Cutting Diameter — mm (DC)20.64 mm
Cutting Diameter — Fractional13/16
Overall Length — in (OAL)5.25"
Overall Length — mm (OAL)133.35 mm
Flute Length — in (LCF)3.375"
Flute Length — mm (LCF)85.73 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.8125"
Connection Dia. — mm (DCON)20.64 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number40552
File Type Download
R4013/16 — 3D Model STP Download
R4013/16 — Line Drawing PDF Download
