R41CN16
R41CN16

R41CN16

UGC PRE5998617
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.10 CAD - $3.10 CAD
$3.10 CAD
$3.10 CAD - $3.10 CAD
$3.10 CAD

Vendu en lots de : 12

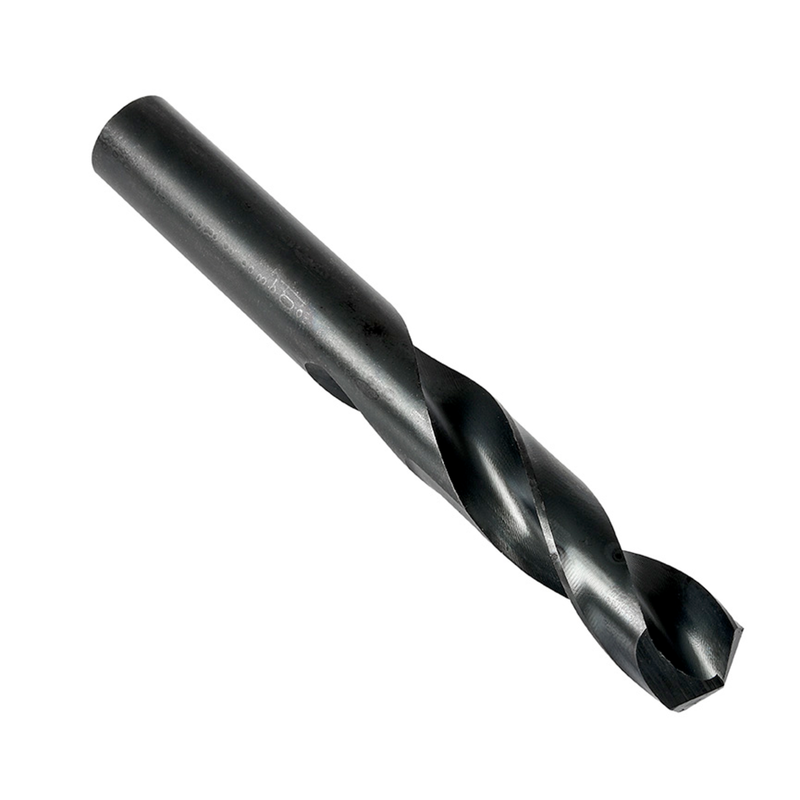

Foret court à queue cylindrique, diamètre 0,1770" (N16) d'une longueur totale de 2.3/16" et d'une longueur de coupe de 1.1/8" selon la norme NAS907 Type C avec une pointe à 135° à éclats renforcée, en HSS avec finition trempée à la vapeur pour le perçage de 2,5xD sans dégagement en acier et en fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R41CN16
GradeTrempé à la vapeur
Product Number5998617
Product FamilyR41C
Dimensions
Cutting Diameter — in (DC)0.177"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)2.1875"
Overall Length — mm (OAL)55.56 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number41816
File Type Download
R41CN16 — 3D Model STP Download
R41CN16 — Line Drawing PDF Download
