R41CN5
R41CN5

R41CN5

UGC PRE5998618
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.71 CAD - $3.71 CAD
$3.71 CAD
$3.71 CAD - $3.71 CAD
$3.71 CAD

Vendu en lots de : 12

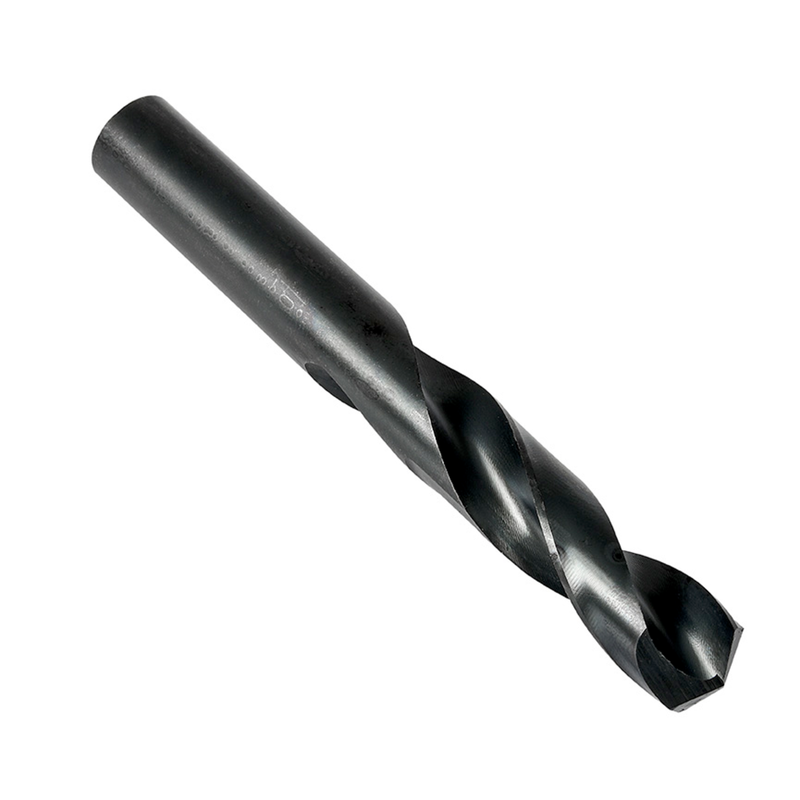

Foret court à queue cylindrique, diamètre 0,2055" (N5) avec une longueur totale de 2,3/8" et une longueur de coupe de 1,1/4" selon la norme NAS907 Type C avec une pointe à affûtage en croix à 135° pour utilisation intensive, en HSS avec finition trempée à la vapeur pour le perçage à 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R41CN5
GradeTrempé à la vapeur
Product Number5998618
Product FamilyR41C
Dimensions
Cutting Diameter — in (DC)0.2055"
Cutting Diameter — mm (DC)5.22 mm
Overall Length — in (OAL)2.375"
Overall Length — mm (OAL)60.33 mm
Flute Length — in (LCF)1.25"
Flute Length — mm (LCF)31.75 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2055"
Connection Dia. — mm (DCON)5.22 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number41805
File Type Download
R41CN5 — 3D Model STP Download
R41CN5 — Line Drawing PDF Download
