R41CN17
R41CN17

R41CN17

UGC PRE5998620
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.10 CAD - $3.10 CAD
$3.10 CAD
$3.10 CAD - $3.10 CAD
$3.10 CAD

Vendu en lots de : 12

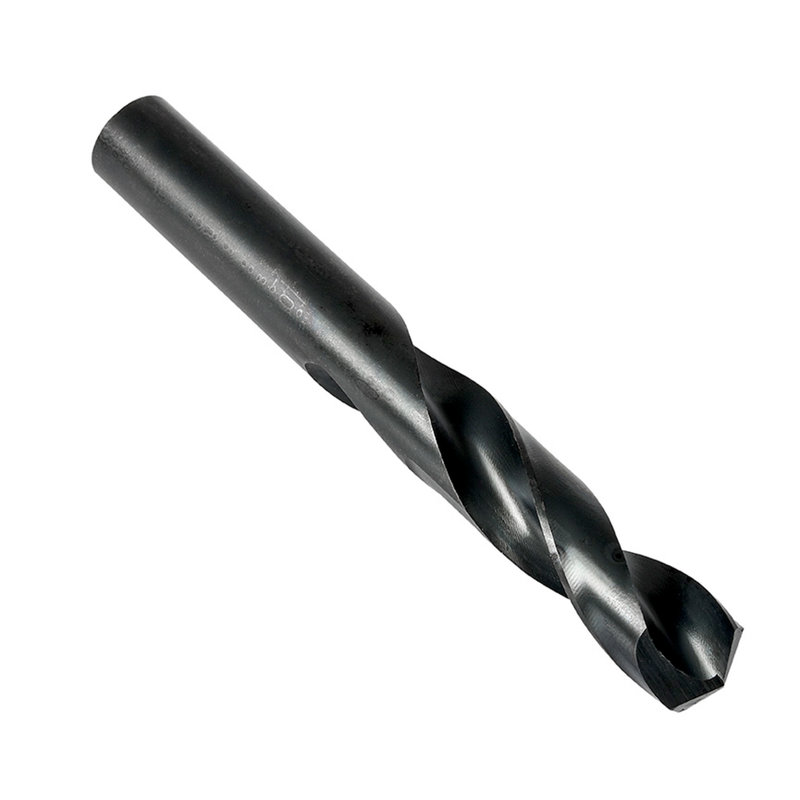

Foret court à queue cylindrique, diamètre 0,1730" (N17) avec une longueur totale de 2.3/16" et une longueur de coupe de 1.1/8" selon la norme NAS907 Type C avec une pointe auto-centrante robuste de 135°, en acier rapide avec finition trempée à la vapeur pour un perçage de 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R41CN17
GradeTrempé à la vapeur
Product Number5998620
Product FamilyR41C
Dimensions
Cutting Diameter — in (DC)0.173"
Cutting Diameter — mm (DC)4.39 mm
Overall Length — in (OAL)2.1875"
Overall Length — mm (OAL)55.56 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.173"
Connection Dia. — mm (DCON)4.39 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number41817
File Type Download
R41CN17 — 3D Model STP Download
R41CN17 — Line Drawing PDF Download
