R4029/64
R4029/64
R4029/64

R4029/64

UGC PRE5998631
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.83 CAD - $12.83 CAD
$12.83 CAD
$12.83 CAD - $12.83 CAD
$12.83 CAD

Vendu en lots de : 6

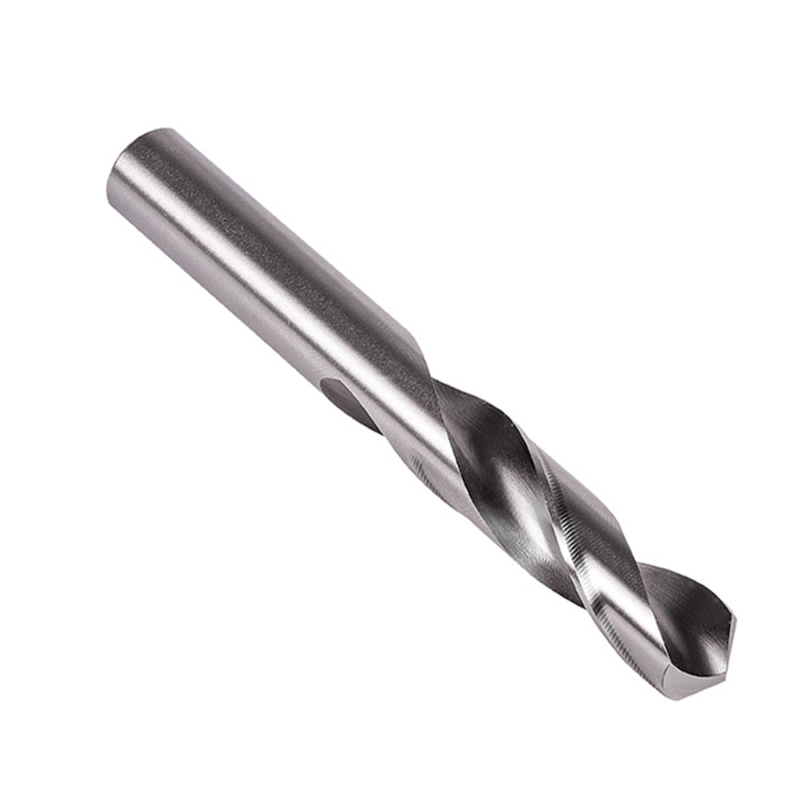

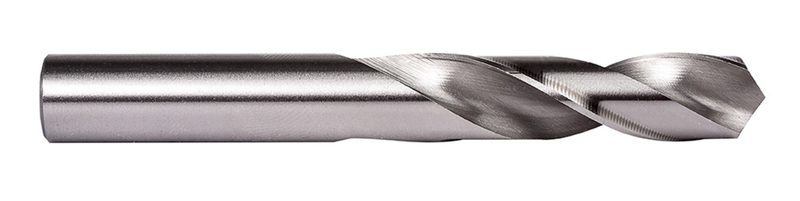

Foret court à queue droite, diamètre 0,4531" (29/64) d'une longueur totale de 3,9/16" et d'une longueur de coupe de 2,1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS finition brillante pour un perçage 2.5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4029/64
GradeLumineux
Product Number5998631
Product FamilyR40
Dimensions
Cutting Diameter — in (DC)0.4531"
Cutting Diameter — mm (DC)11.51 mm
Cutting Diameter — Fractional29/64
Overall Length — in (OAL)3.5625"
Overall Length — mm (OAL)90.49 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4531"
Connection Dia. — mm (DCON)11.51 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number40029
File Type Download
R4029/64 — 3D Model STP Download
R4029/64 — Line Drawing PDF Download
