R41CN58
R41CN58

R41CN58

UGC PRE5998661
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.23 CAD - $2.23 CAD
$2.23 CAD
$2.23 CAD - $2.23 CAD
$2.23 CAD

Vendu en lots de : 12

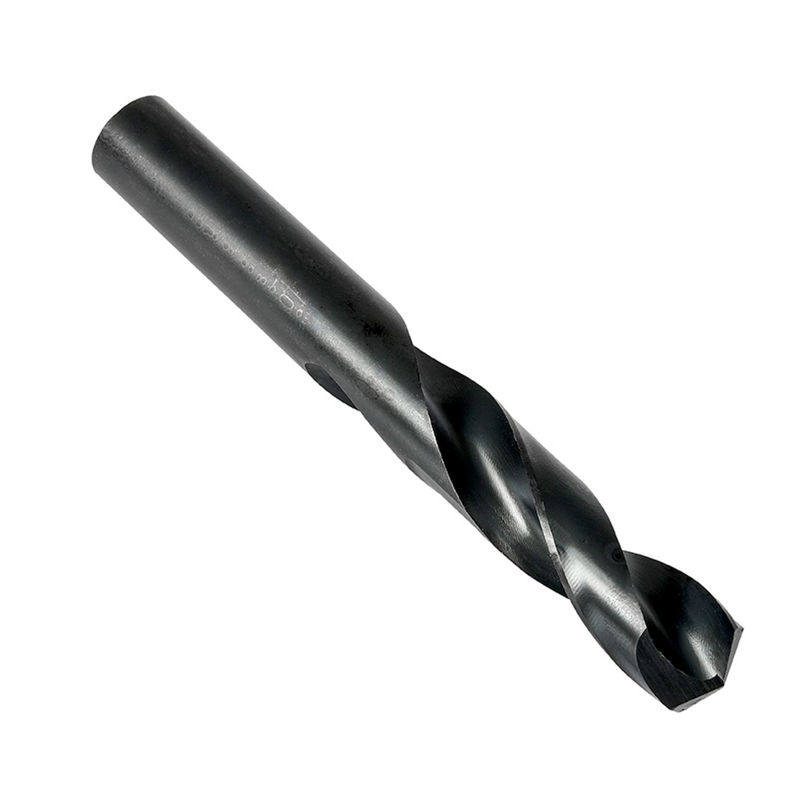

Foret court à queue cylindrique, diamètre 0,0420" (N58) avec une longueur totale de 1,3/8" et une longueur de coupe de 1/2" selon la norme NAS907 Type C avec une pointe à 135° à autocentrage renforcé, en acier rapide avec finition traitée à la vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R41CN58
GradeTrempé à la vapeur
Product Number5998661
Product FamilyR41C
Dimensions
Cutting Diameter — in (DC)0.042"
Cutting Diameter — mm (DC)1.07 mm
Overall Length — in (OAL)1.375"
Overall Length — mm (OAL)34.93 mm
Flute Length — in (LCF)0.5"
Flute Length — mm (LCF)12.7 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.042"
Connection Dia. — mm (DCON)1.07 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number41858
File Type Download
R41CN58 — 3D Model STP Download
R41CN58 — Line Drawing PDF Download
