R101/64
R101/64
R101/64

R101/64

UGC PRE5998664
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.39 CAD - $3.39 CAD
$3.39 CAD
$3.39 CAD - $3.39 CAD
$3.39 CAD

Vendu en lots de : 12

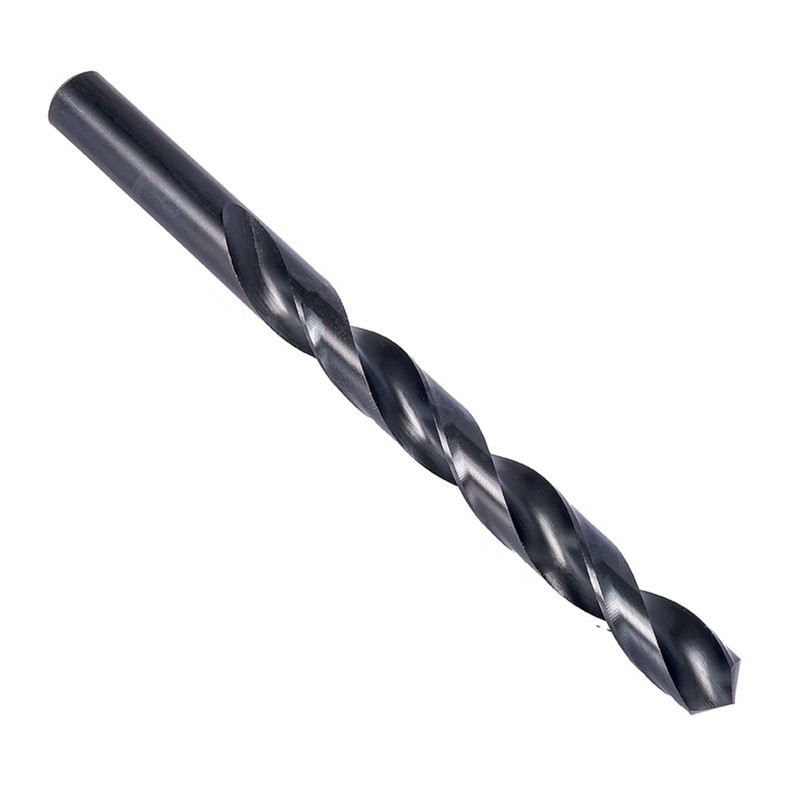

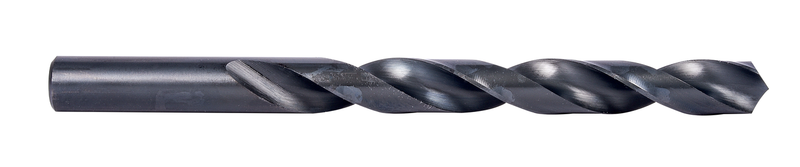

Foret jobber à queue droite, diamètre 0,0156" (1/64) avec une longueur totale de 3/4" et une longueur de goujure de 3/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage de 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R101/64
GradeTrempé à la vapeur
Product Number5998664
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.0156"
Cutting Diameter — mm (DC)0.4 mm
Cutting Diameter — Fractional1/64
Overall Length — in (OAL)0.75"
Overall Length — mm (OAL)19.05 mm
Flute Length — in (LCF)0.1875"
Flute Length — mm (LCF)4.76 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0156"
Connection Dia. — mm (DCON)0.4 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10001
File Type Download
R101/64 — 3D Model STP Download
R101/64 — Line Drawing PDF Download
