R1011/16
R1011/16
R1011/16

R1011/16

UGC PRE5998675
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.81 CAD - $42.81 CAD
$42.81 CAD
$42.81 CAD - $42.81 CAD
$42.81 CAD

Vendu en lots de : 1

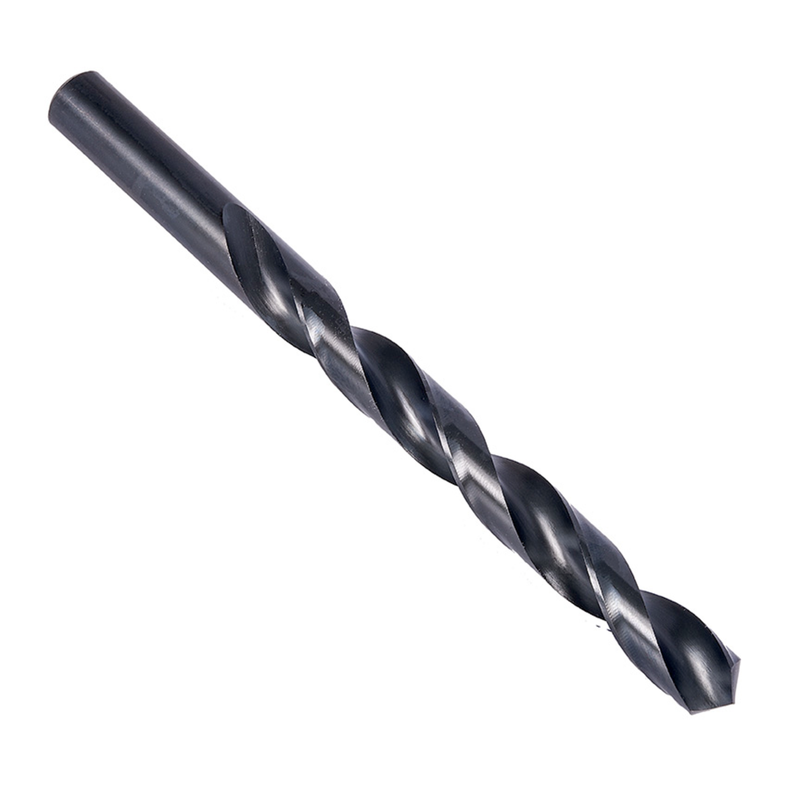

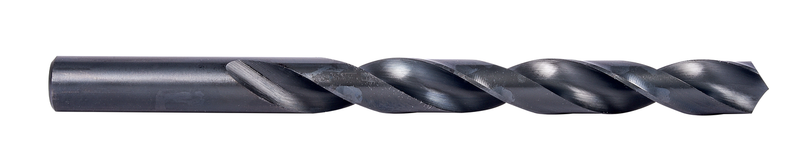

Foret de longueur courte à queue cylindrique, diamètre 0,6875" (11/16) avec une longueur totale de 7.5/8" et une longueur de goujure de 5.5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R1011/16
GradeTrempé à la vapeur
Product Number5998675
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)7.625"
Overall Length — mm (OAL)193.68 mm
Flute Length — in (LCF)5.625"
Flute Length — mm (LCF)142.88 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.6875"
Connection Dia. — mm (DCON)17.46 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10044
File Type Download
R1011/16 — 3D Model STP Download
R1011/16 — Line Drawing PDF Download
