R1011/64
R1011/64
R1011/64

R1011/64

UGC PRE5998681
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.40 CAD - $2.40 CAD
$2.40 CAD
$2.40 CAD - $2.40 CAD
$2.40 CAD

Vendu en lots de : 12

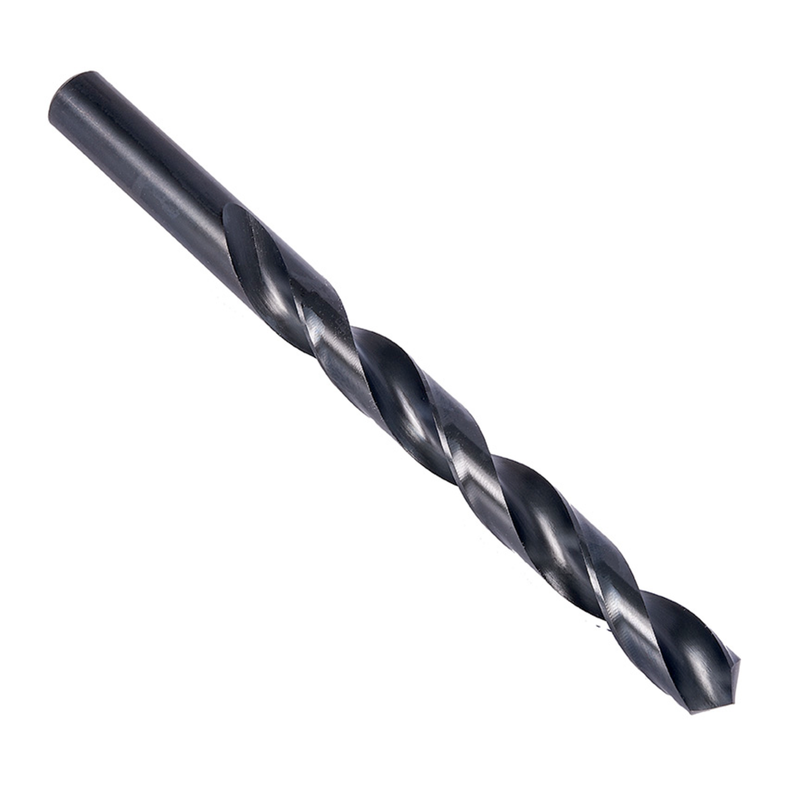

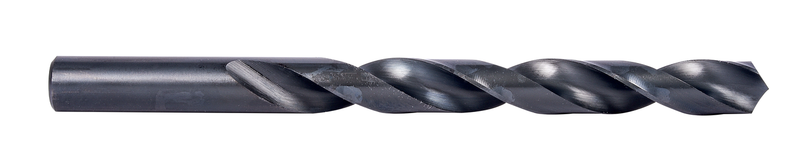

Foret de longueur jobber à queue droite, diamètre 0,1719" (11/64) avec une longueur totale de 3,1/4" et une longueur de goujure de 2,1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R1011/64
GradeTrempé à la vapeur
Product Number5998681
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.1719"
Cutting Diameter — mm (DC)4.37 mm
Cutting Diameter — Fractional11/64
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)2.125"
Flute Length — mm (LCF)53.98 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.1719"
Connection Dia. — mm (DCON)4.37 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10011
File Type Download
R1011/64 — 3D Model STP Download
R1011/64 — Line Drawing PDF Download
