R1013/64
R1013/64
R1013/64

R1013/64

UGC PRE5998687
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.94 CAD - $2.94 CAD
$2.94 CAD
$2.94 CAD - $2.94 CAD
$2.94 CAD

Vendu en lots de : 12

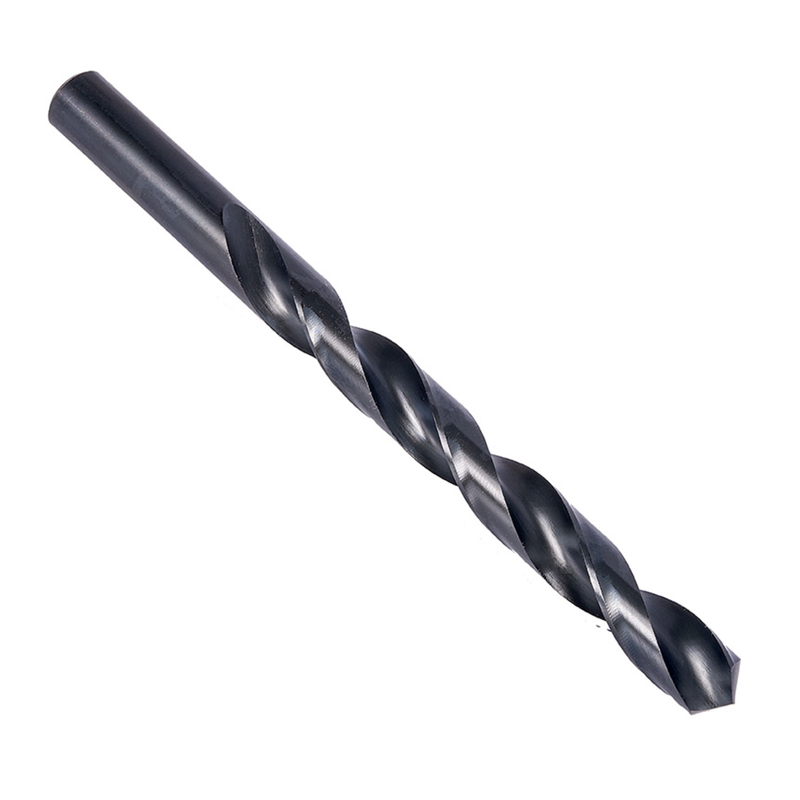

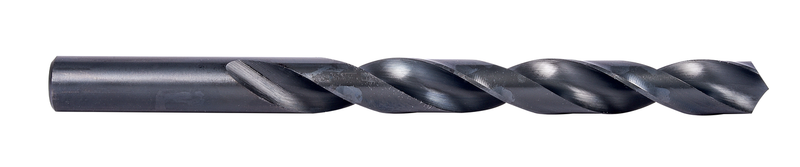

Foret court avec queue cylindrique, diamètre 0,2031" (13/64) avec une longueur totale de 3,5/8" et une longueur de goujure de 2,7/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempe à la vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R1013/64
GradeTrempé à la vapeur
Product Number5998687
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)3.625"
Overall Length — mm (OAL)92.08 mm
Flute Length — in (LCF)2.4375"
Flute Length — mm (LCF)61.91 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2031"
Connection Dia. — mm (DCON)5.16 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10013
File Type Download
R1013/64 — 3D Model STP Download
R1013/64 — Line Drawing PDF Download
