R1019/32
R1019/32
R1019/32

R1019/32

UGC PRE5998703
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.94 CAD - $31.94 CAD
$31.94 CAD
$31.94 CAD - $31.94 CAD
$31.94 CAD

Vendu en lots de : 1

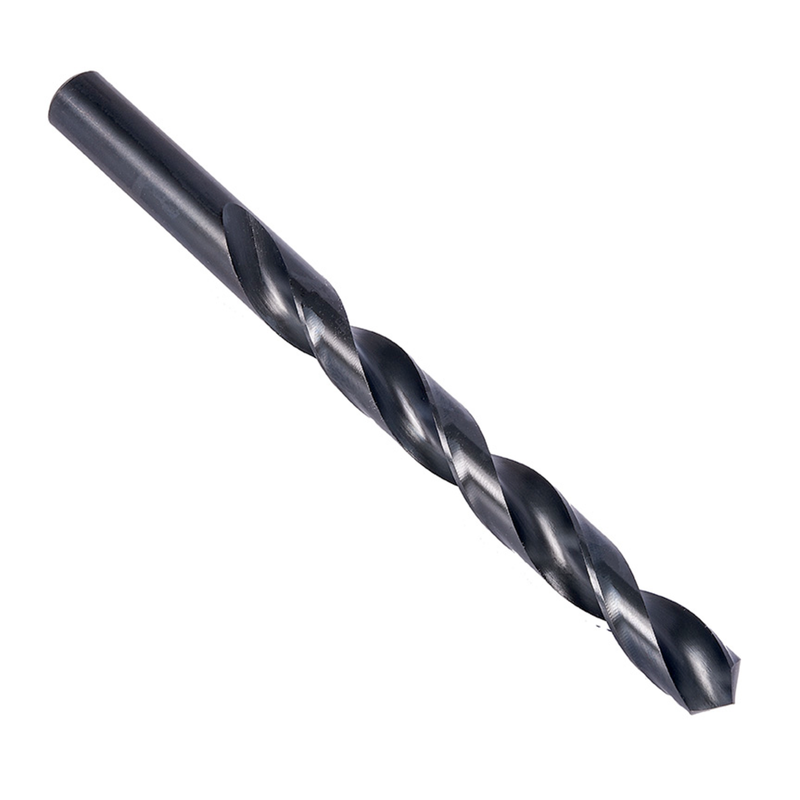

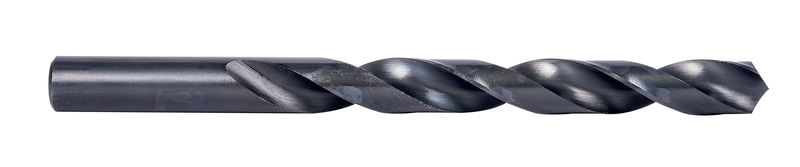

Foret court avec queue cylindrique, diamètre 0,5938" (19/32) avec une longueur totale de 7,1/8" et une longueur de goujure de 5,3/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R1019/32
GradeTrempé à la vapeur
Product Number5998703
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.5938"
Cutting Diameter — mm (DC)15.08 mm
Cutting Diameter — Fractional19/32
Overall Length — in (OAL)7.125"
Overall Length — mm (OAL)180.98 mm
Flute Length — in (LCF)5.1875"
Flute Length — mm (LCF)131.76 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5938"
Connection Dia. — mm (DCON)15.08 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10038
File Type Download
R1019/32 — 3D Model STP Download
R1019/32 — Line Drawing PDF Download
