R103/64
R103/64
R103/64

R103/64

UGC PRE5998725
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.06 CAD - $2.06 CAD
$2.06 CAD
$2.06 CAD - $2.06 CAD
$2.06 CAD

Vendu en lots de : 12

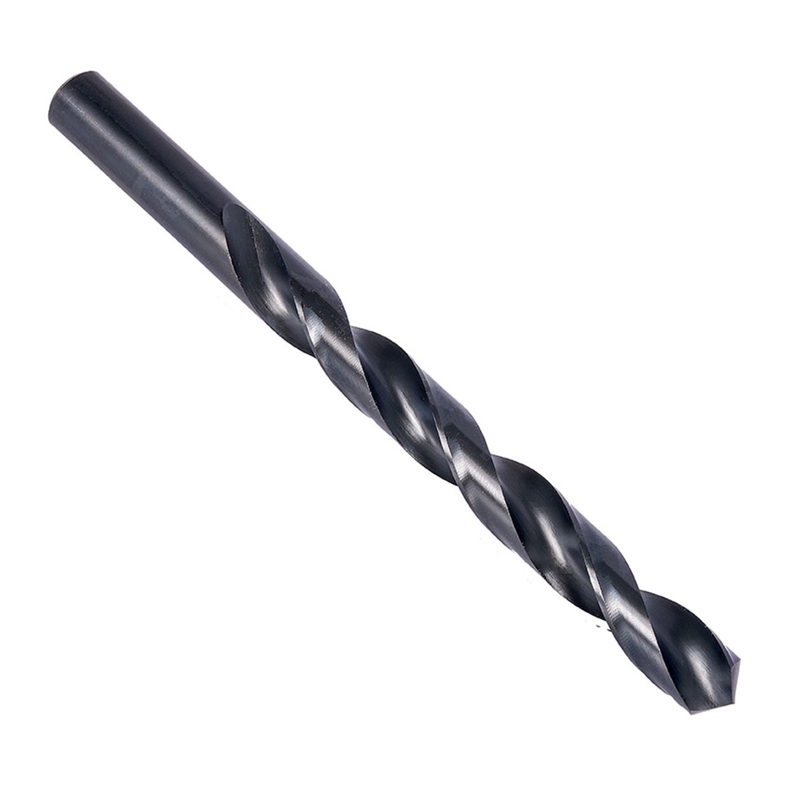

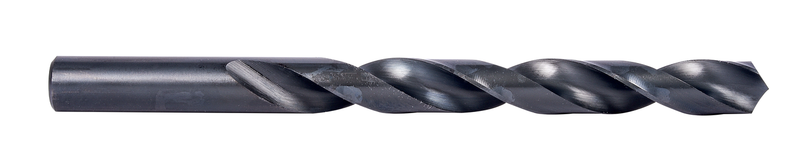

Foret court avec queue cylindrique, diamètre de 0,0469" (3/64) d'une longueur totale de 1,3/4" et d'une longueur de goujure de 3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R103/64
GradeTrempé à la vapeur
Product Number5998725
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Cutting Diameter — Fractional3/64
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Flute Length — in (LCF)0.75"
Flute Length — mm (LCF)19.05 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0469"
Connection Dia. — mm (DCON)1.19 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10003
File Type Download
R103/64 — 3D Model STP Download
R103/64 — Line Drawing PDF Download
