R51FS3/16
R51FS3/16
R51FS3/16

R51FS3/16

UGC PRE5998743
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.49 CAD - $14.49 CAD
$14.49 CAD
$14.49 CAD - $14.49 CAD
$14.49 CAD

Vendu en lots de : 12

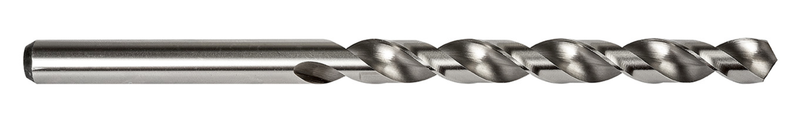

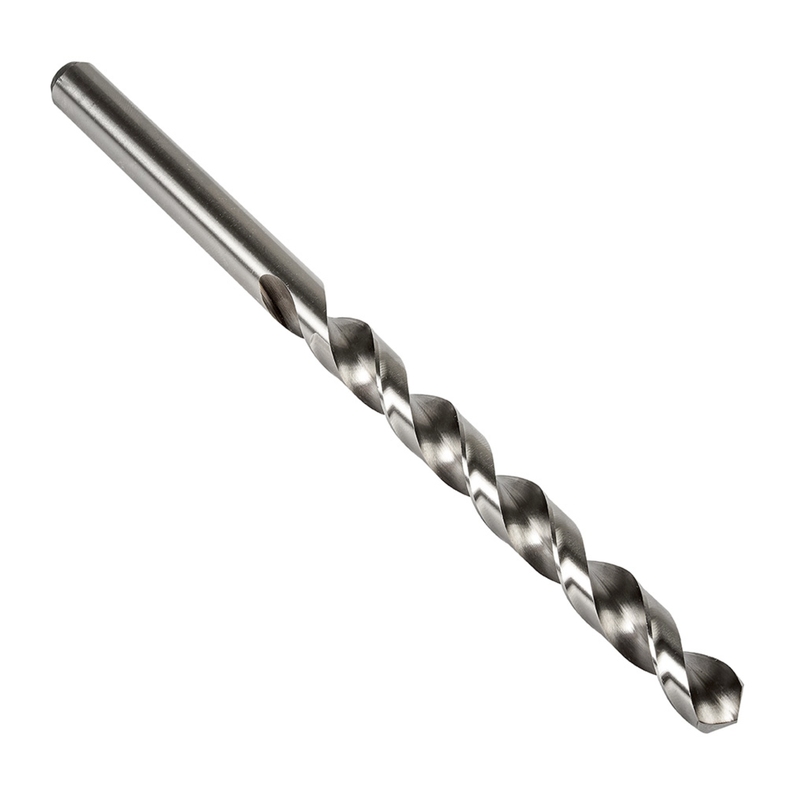

Foret série longue à queue droite, diamètre 0,1875" (3/16) avec une longueur totale de 5,3/4" et une longueur de coupe de 3,3/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS3/16
GradeLumineux
Product Number5998743
Product FamilyR51FS

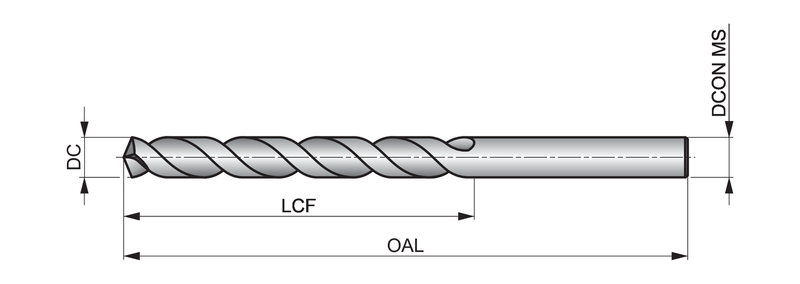

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)5.75"
Overall Length — mm (OAL)146.05 mm
Flute Length — in (LCF)3.375"
Flute Length — mm (LCF)85.73 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51512
File Type Download
R51FS3/16 — 3D Model STP Download
R51FS3/16 — Line Drawing PDF Download
