UGC PRE5998777
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.04 CAD - $7.04 CAD
$7.04 CAD
$7.04 CAD - $7.04 CAD
$7.04 CAD

Vendu en lots de : 12

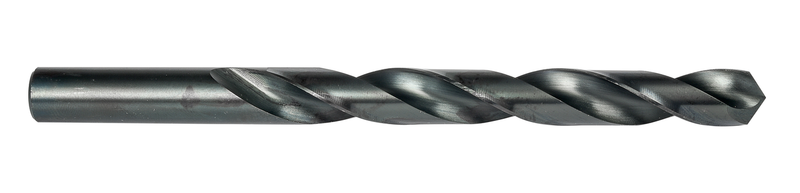

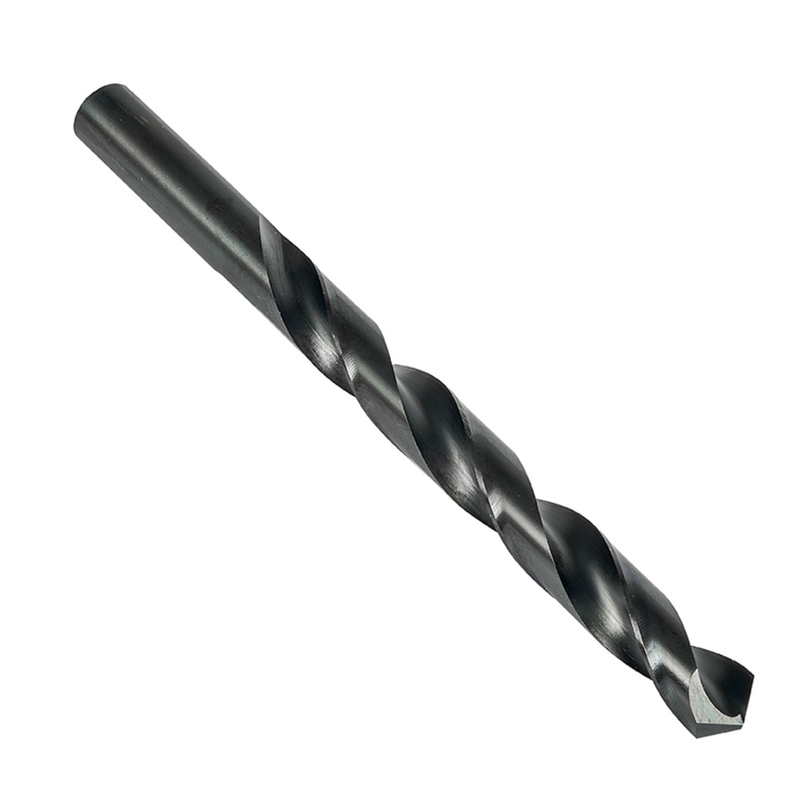

Foret court avec queue cylindrique, diamètre 0,2810" (K) avec une longueur totale de 4,1/4" et une longueur de coupe de 2,15/16" selon la norme NAS907 Type B avec pointe fendue robuste à 135°, en acier rapide HSS avec finition trempée à la vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R15BK
GradeTrempé vapeur
Product Number5998777
Product FamilyR15B
Dimensions
Cutting Diameter — in (DC)0.281"
Cutting Diameter — mm (DC)7.14 mm
Overall Length — in (OAL)4.25"
Overall Length — mm (OAL)107.95 mm
Flute Length — in (LCF)2.9375"
Flute Length — mm (LCF)74.61 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.281"
Connection Dia. — mm (DCON)7.14 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number15211
File Type Download
R15BK — 3D Model STP Download
R15BK — Line Drawing PDF Download
