R109/16
R109/16
R109/16

R109/16

UGC PRE5998800
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.47 CAD - $30.47 CAD
$30.47 CAD
$30.47 CAD - $30.47 CAD
$30.47 CAD

Vendu en lots de : 1

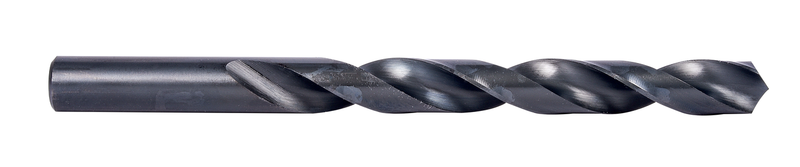

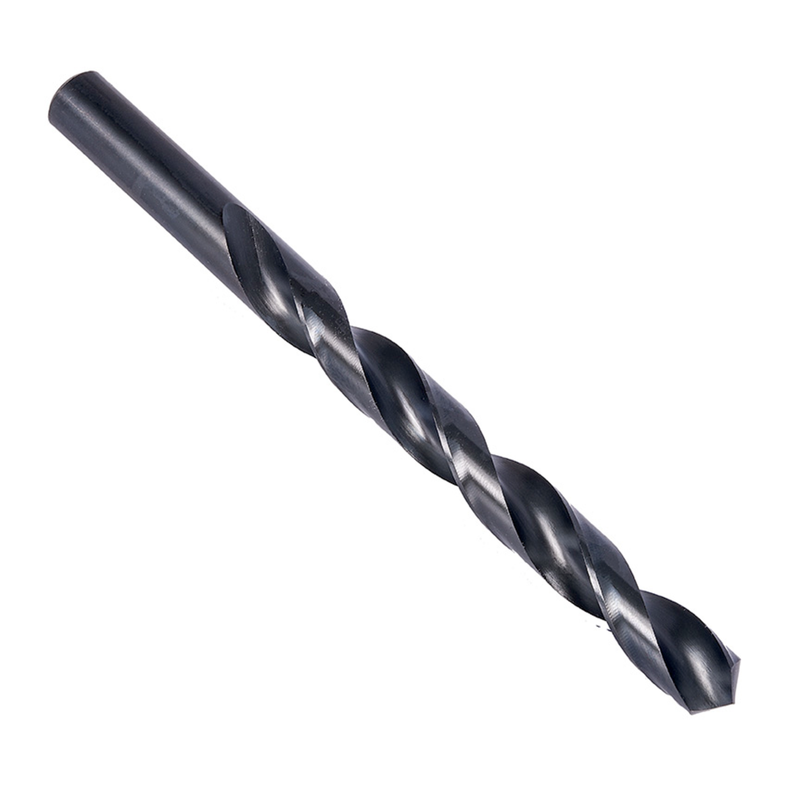

Foret série courte à queue cylindrique, diamètre 0,5625" (9/16) avec une longueur totale de 6.5/8" et une longueur de goujure de 4.13/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour un perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R109/16
GradeTrempé à la vapeur
Product Number5998800
Product FamilyR10
Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)6.625"
Overall Length — mm (OAL)168.28 mm
Flute Length — in (LCF)4.8125"
Flute Length — mm (LCF)122.24 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5625"
Connection Dia. — mm (DCON)14.29 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number10036
File Type Download
R109/16 — 3D Model STP Download
R109/16 — Line Drawing PDF Download
