R15PB
R15PB
R15PB

R15PB

UGC PRE5998840
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.50 CAD - $4.50 CAD
$4.50 CAD
$4.50 CAD - $4.50 CAD
$4.50 CAD

Vendu en lots de : 12

Forets courts à queue cylindrique, diamètre 0,2380" (B) avec une longueur totale de 4" et une longueur de coupe de 2,3/4" selon la norme ANSI avec un angle de pointe de 118°, en acier rapide avec finition brillante pour perçage 4xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R15PB
GradeLumineux
Product Number5998840
Product FamilyR15P

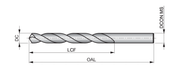

Dimensions
Cutting Diameter — in (DC)0.238"
Cutting Diameter — mm (DC)6.05 mm
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Length × Diameter Ratio4
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number15602
File Type Download
R15PB — 3D Model STP Download
R15PB — Line Drawing PDF Download
