R51FS5/32
R51FS5/32
R51FS5/32

R51FS5/32

UGC PRE5998913
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.63 CAD - $13.63 CAD
$13.63 CAD
$13.63 CAD - $13.63 CAD
$13.63 CAD

Vendu en lots de : 12

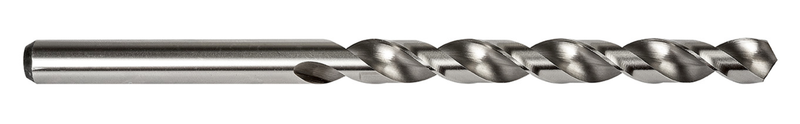

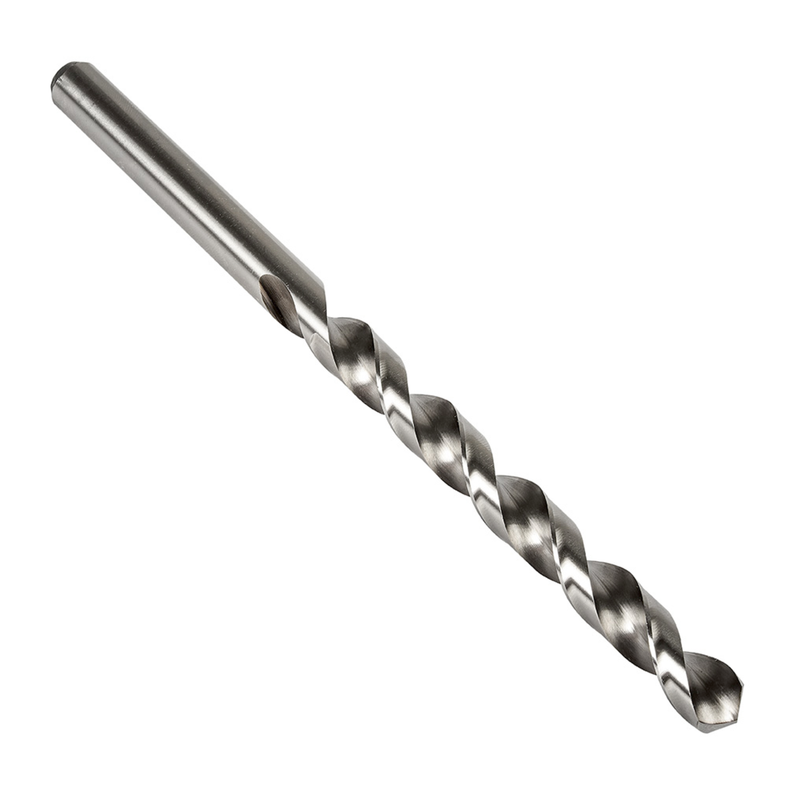

Foret série longue, queue cylindrique, diamètre 0,1563" (5/32) avec une longueur totale de 5,3/8" et une longueur de goujure de 3" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage à 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS5/32
GradeLumineux
Product Number5998913
Product FamilyR51FS

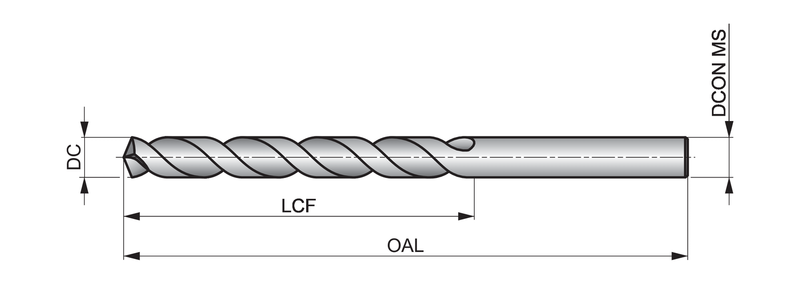

Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)5.375"
Overall Length — mm (OAL)136.53 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.1563"
Connection Dia. — mm (DCON)3.97 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51510
File Type Download
R51FS5/32 — 3D Model STP Download
R51FS5/32 — Line Drawing PDF Download
