R51FS5/64
R51FS5/64
R51FS5/64

R51FS5/64

UGC PRE5998917
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.50 CAD - $6.50 CAD
$6.50 CAD
$6.50 CAD - $6.50 CAD
$6.50 CAD

Vendu en lots de : 12

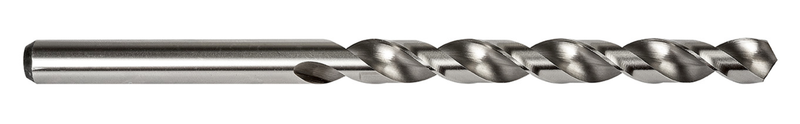

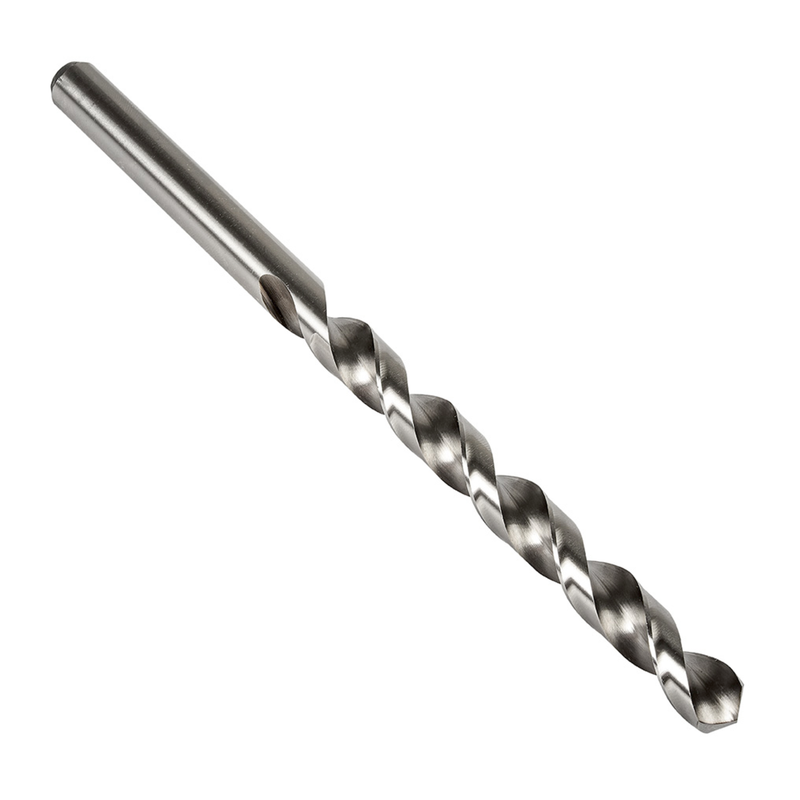

Foret série longue, queue cylindrique, diamètre 0,0781" (5/64), longueur totale de 3,3/4" et longueur de goujure de 2", conforme à la norme ANSI, angle de pointe de 118°, en HSS, finition brillante pour perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS5/64
GradeLumineux
Product Number5998917
Product FamilyR51FS

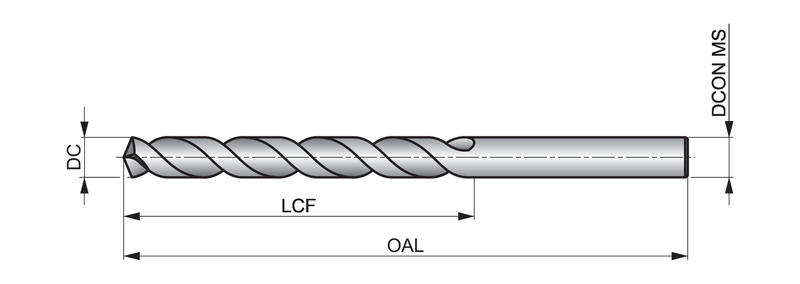

Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.0"
Flute Length — mm (LCF)50.8 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0781"
Connection Dia. — mm (DCON)1.98 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51505
File Type Download
R51FS5/64 — 3D Model STP Download
R51FS5/64 — Line Drawing PDF Download
