R51FS7/16
R51FS7/16
R51FS7/16

R51FS7/16

UGC PRE5998920
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.79 CAD - $29.79 CAD
$29.79 CAD
$29.79 CAD - $29.79 CAD
$29.79 CAD

Vendu en lots de : 6

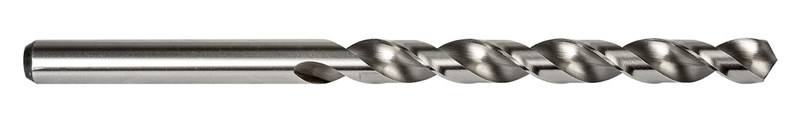

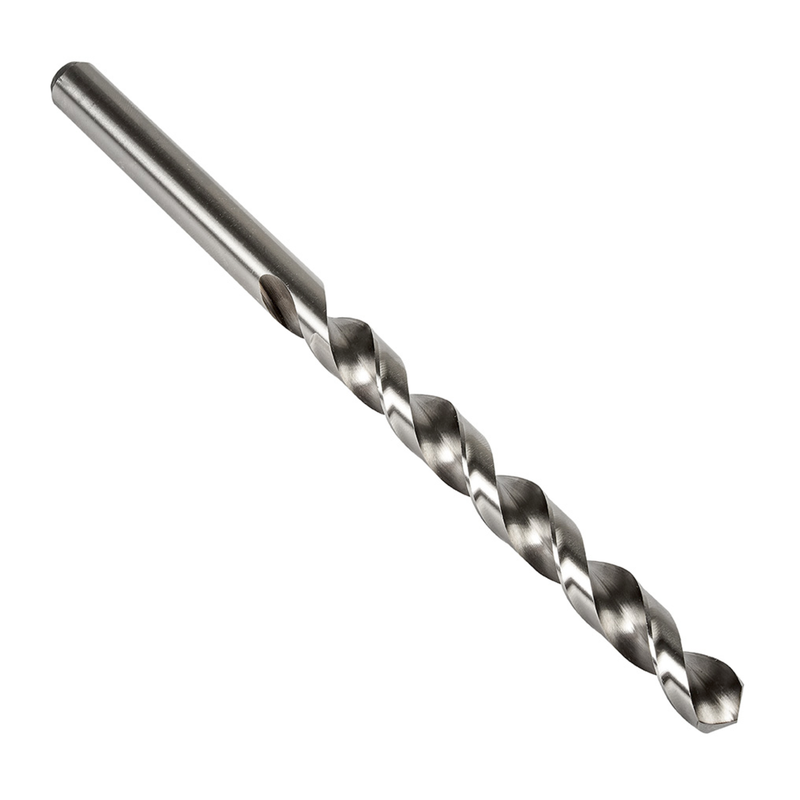

Foret série longue à queue cylindrique, diamètre 0,4375" (7/16) avec une longueur totale de 7,1/4" et une longueur de goujure de 4,5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage à 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS7/16
GradeLumineux
Product Number5998920
Product FamilyR51FS

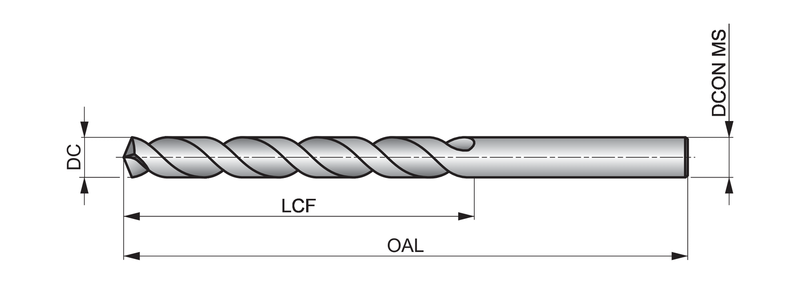

Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)7.25"
Overall Length — mm (OAL)184.15 mm
Flute Length — in (LCF)4.625"
Flute Length — mm (LCF)117.48 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51528
File Type Download
R51FS7/16 — 3D Model STP Download
R51FS7/16 — Line Drawing PDF Download
