R51FS7/32
R51FS7/32
R51FS7/32

R51FS7/32

UGC PRE5998924
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.47 CAD - $15.47 CAD
$15.47 CAD
$15.47 CAD - $15.47 CAD
$15.47 CAD

Vendu en lots de : 12

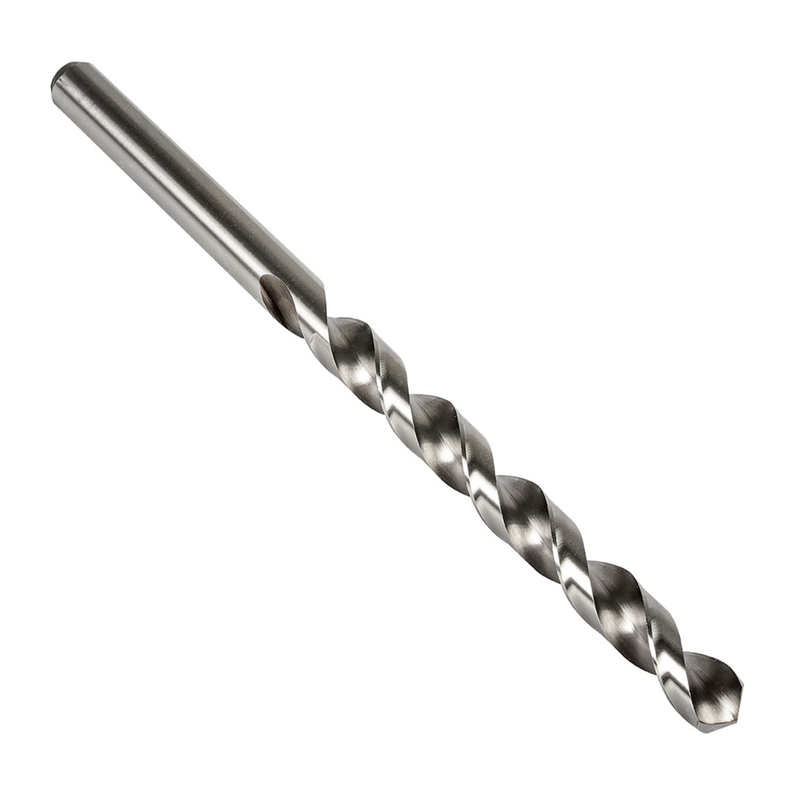

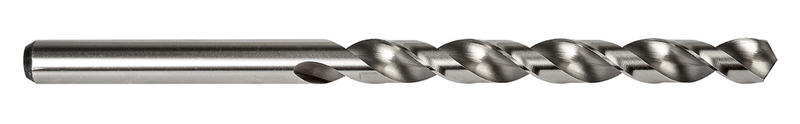

Foret série longue, à queue cylindrique, diamètre 0,2188" (7/32) avec une longueur totale de 6" et une longueur de coupe de 3.5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS7/32
GradeLumineux
Product Number5998924
Product FamilyR51FS

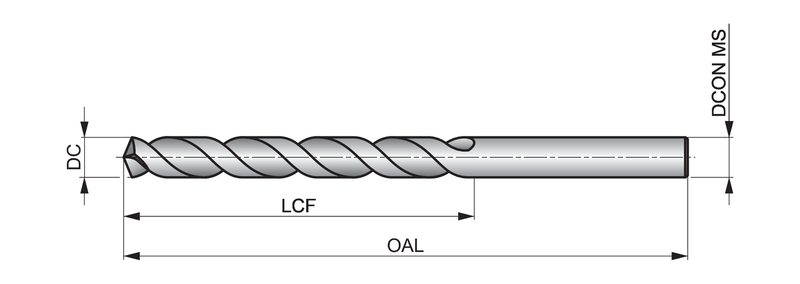

Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.2188"
Connection Dia. — mm (DCON)5.56 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51514
File Type Download
R51FS7/32 — 3D Model STP Download
R51FS7/32 — Line Drawing PDF Download
