R42CR
R42CR

R42CR

UGC PRE5998941
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.96 CAD - $7.96 CAD
$7.96 CAD
$7.96 CAD - $7.96 CAD
$7.96 CAD

Vendu en lots de : 6

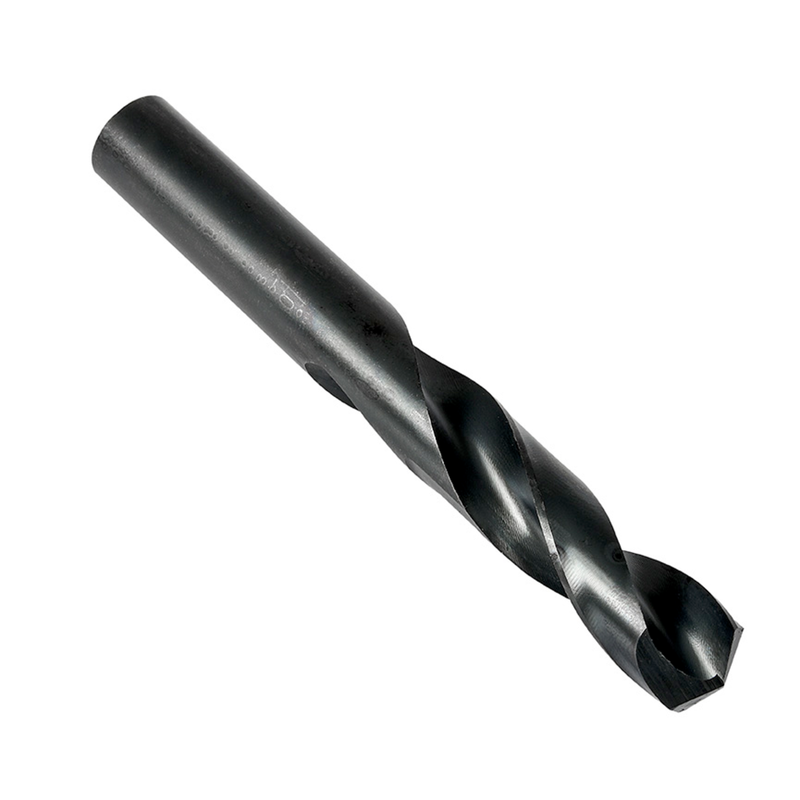

Forets courts à queue cylindrique, diamètre 0,3390" (R) avec une longueur totale de 3" et une longueur de coupe de 1,11/16" selon la norme NAS907 Type C avec pointe fendue robuste de 135°, en HSS avec finition trempée à la vapeur pour un perçage 2,5xD sans dégagement de copeaux dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R42CR
GradeTrempé à la vapeur
Product Number5998941
Product FamilyR42C
Dimensions
Cutting Diameter — in (DC)0.339"
Cutting Diameter — mm (DC)8.61 mm
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)1.6875"
Flute Length — mm (LCF)42.86 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.339"
Connection Dia. — mm (DCON)8.61 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number42818
File Type Download
R42CR — 3D Model STP Download
R42CR — Line Drawing PDF Download
