UGC PRE5998955
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.56 CAD - $7.56 CAD
$7.56 CAD
$7.56 CAD - $7.56 CAD
$7.56 CAD

Vendu en lots de : 6

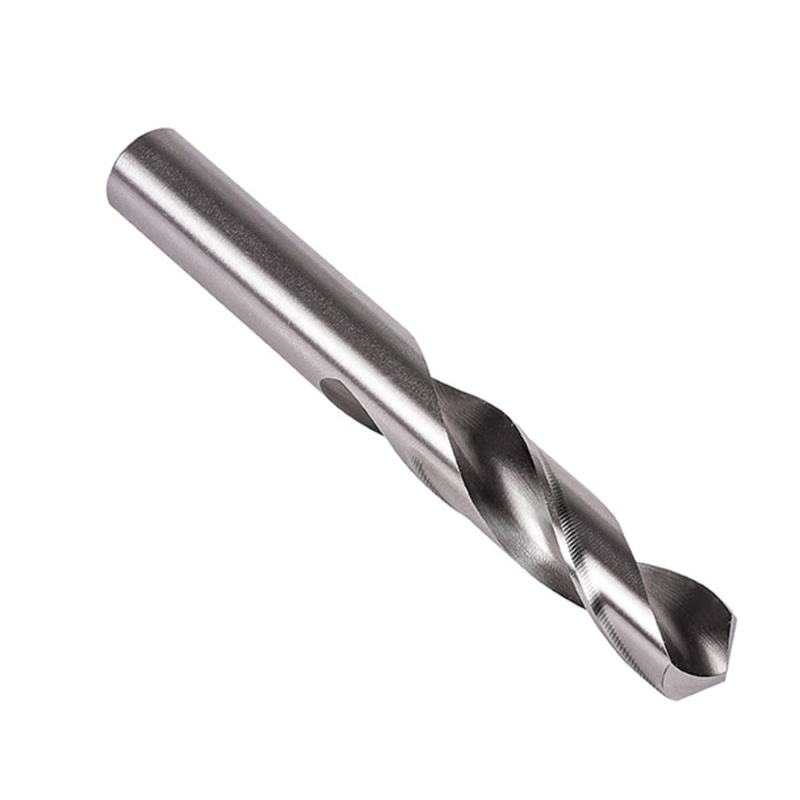

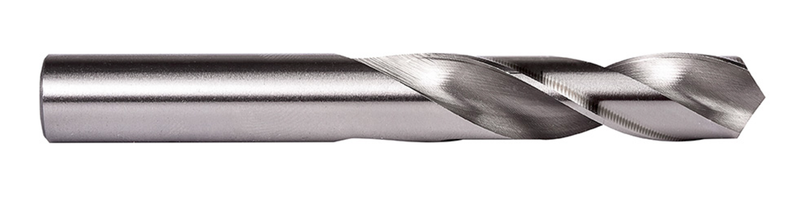

Foret court à queue cylindrique, diamètre 0,3390" (R) avec une longueur totale de 3" et une longueur de coupe de 1,11/16" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R42R
GradeLumineux
Product Number5998955
Product FamilyR42
Dimensions
Cutting Diameter — in (DC)0.339"
Cutting Diameter — mm (DC)8.61 mm
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)1.6875"
Flute Length — mm (LCF)42.86 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.339"
Connection Dia. — mm (DCON)8.61 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number42018
File Type Download
R42R — 3D Model STP Download
R42R — Line Drawing PDF Download
