R42T
R42T
R42T

R42T

UGC PRE5998959
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.13 CAD - $10.13 CAD
$10.13 CAD
$10.13 CAD - $10.13 CAD
$10.13 CAD

Vendu en lots de : 6

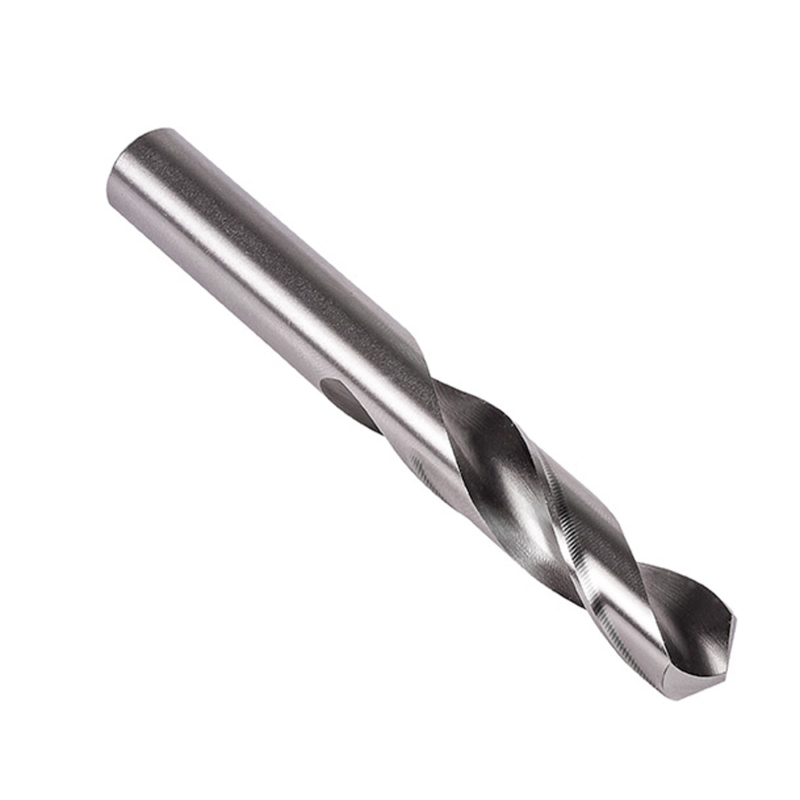

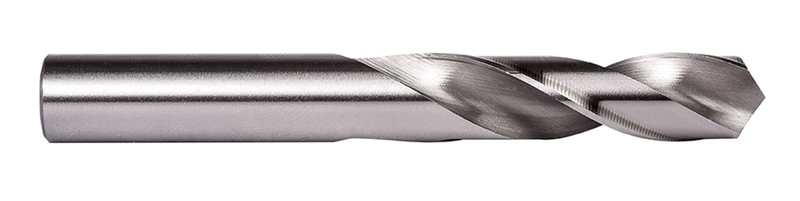

Foret court à queue cylindrique, diamètre 0,3580" (T) avec une longueur totale de 3.1/16" et une longueur de coupe de 1.3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 2.5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R42T
GradeLumineux
Product Number5998959
Product FamilyR42
Dimensions
Cutting Diameter — in (DC)0.358"
Cutting Diameter — mm (DC)9.09 mm
Overall Length — in (OAL)3.0625"
Overall Length — mm (OAL)77.79 mm
Flute Length — in (LCF)1.75"
Flute Length — mm (LCF)44.45 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.358"
Connection Dia. — mm (DCON)9.09 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number42020
File Type Download
R42T — 3D Model STP Download
R42T — Line Drawing PDF Download
