R42W
R42W
R42W

R42W

UGC PRE5998968
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.29 CAD - $11.29 CAD
$11.29 CAD
$11.29 CAD - $11.29 CAD
$11.29 CAD

Vendu en lots de : 6

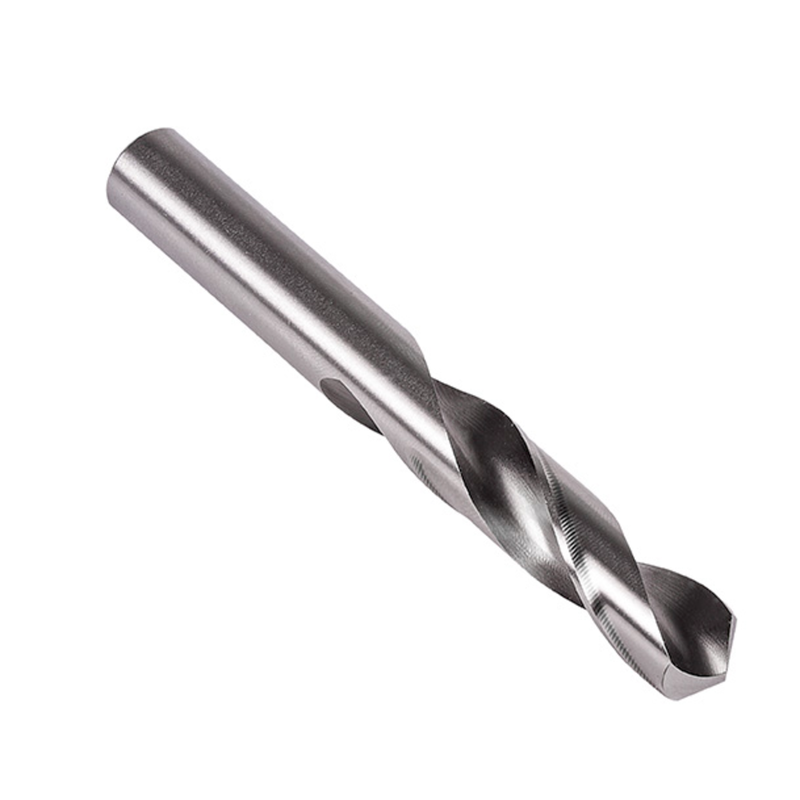

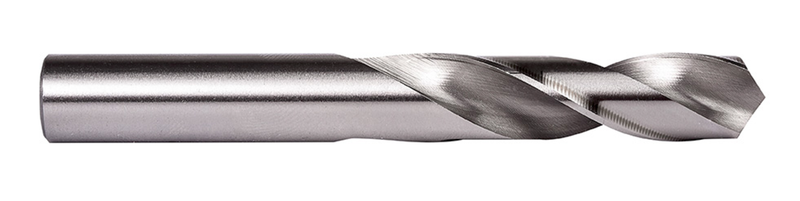

Foret court à queue cylindrique, diamètre 0,3860" (W), longueur totale de 3,1/4" et longueur de coupe de 1,7/8" selon la norme ANSI, angle de pointe de 118°, en HSS avec finition brillante pour le perçage de 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R42W
GradeLumineux
Product Number5998968
Product FamilyR42
Dimensions
Cutting Diameter — in (DC)0.386"
Cutting Diameter — mm (DC)9.8 mm
Overall Length — in (OAL)3.25"
Overall Length — mm (OAL)82.55 mm
Flute Length — in (LCF)1.875"
Flute Length — mm (LCF)47.63 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.386"
Connection Dia. — mm (DCON)9.8 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number42023
File Type Download
R42W — 3D Model STP Download
R42W — Line Drawing PDF Download
