R51FS1/16
R51FS1/16
R51FS1/16

R51FS1/16

UGC PRE5998977
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.44 CAD - $6.44 CAD
$6.44 CAD
$6.44 CAD - $6.44 CAD
$6.44 CAD

Vendu en lots de : 12

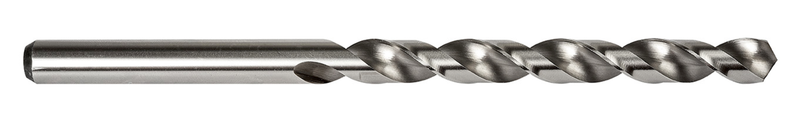

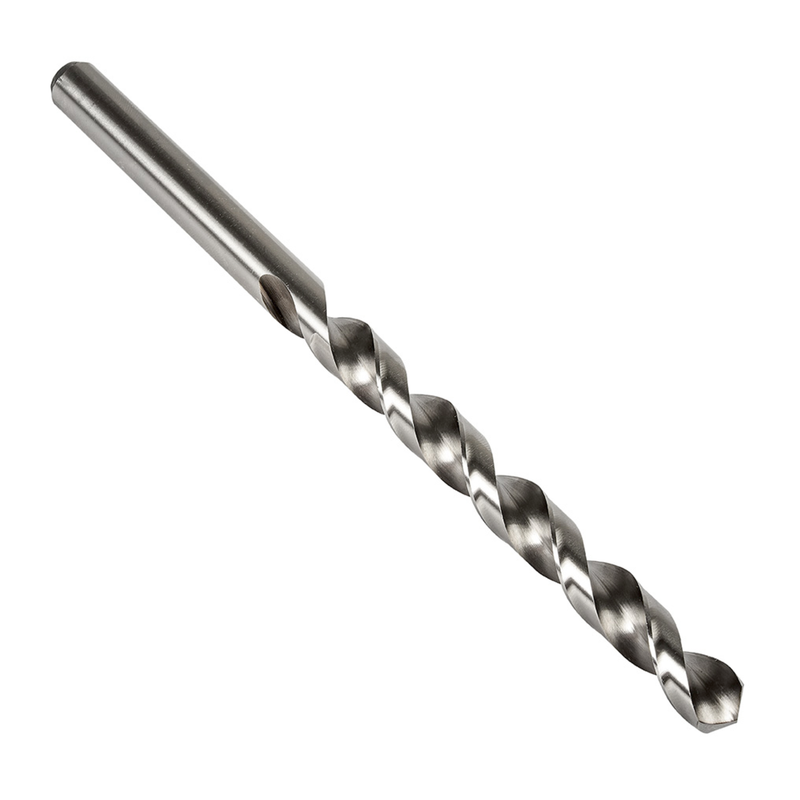

Foret série longue avec queue cylindrique, diamètre 0,0625" (1/16) avec une longueur totale de 3" et une longueur de coupe de 1,3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS1/16
GradeLumineux
Product Number5998977
Product FamilyR51FS
Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Flute Length — in (LCF)1.75"
Flute Length — mm (LCF)44.45 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.0625"
Connection Dia. — mm (DCON)1.59 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51504
File Type Download
R51FS1/16 — 3D Model STP Download

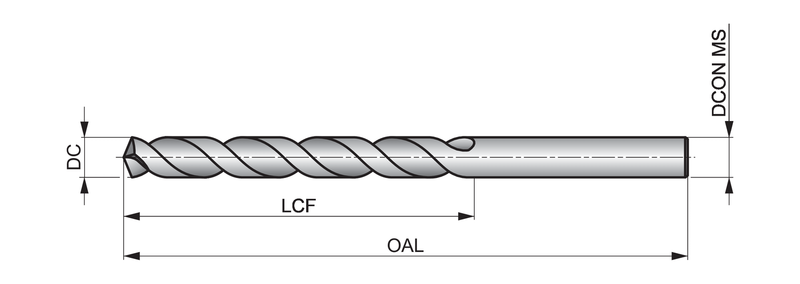

R51FS1/16 — Line Drawing PDF Download
