R511.1/4
R511.1/4
R511.1/4

R511.1/4

UGC PRE5998981
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.23 CAD - $221.23 CAD
$221.23 CAD
$221.23 CAD - $221.23 CAD
$221.23 CAD

Vendu en lots de : 1

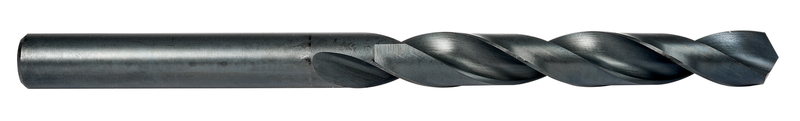

Foret série longue, queue cylindrique, diamètre 1.2500" (1.1/4), longueur totale 12.1/2" et longueur de coupe 7.7/8" selon la norme ANSI, pointe à 118°, en HSS avec finition trempée vapeur pour perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R511.1/4
GradeTrempé à la vapeur
Product Number5998981
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.75 mm
Cutting Diameter — Fractional1,1/4
Overall Length — in (OAL)12.5"
Overall Length — mm (OAL)317.5 mm
Flute Length — in (LCF)7.875"
Flute Length — mm (LCF)200.03 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51116
File Type Download
R511.1/4 — 3D Model STP Download
R511.1/4 — Line Drawing PDF Download
