R51FS1/4
R51FS1/4
R51FS1/4

R51FS1/4

UGC PRE5998982
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.83 CAD - $17.83 CAD
$17.83 CAD
$17.83 CAD - $17.83 CAD
$17.83 CAD

Vendu en lots de : 12

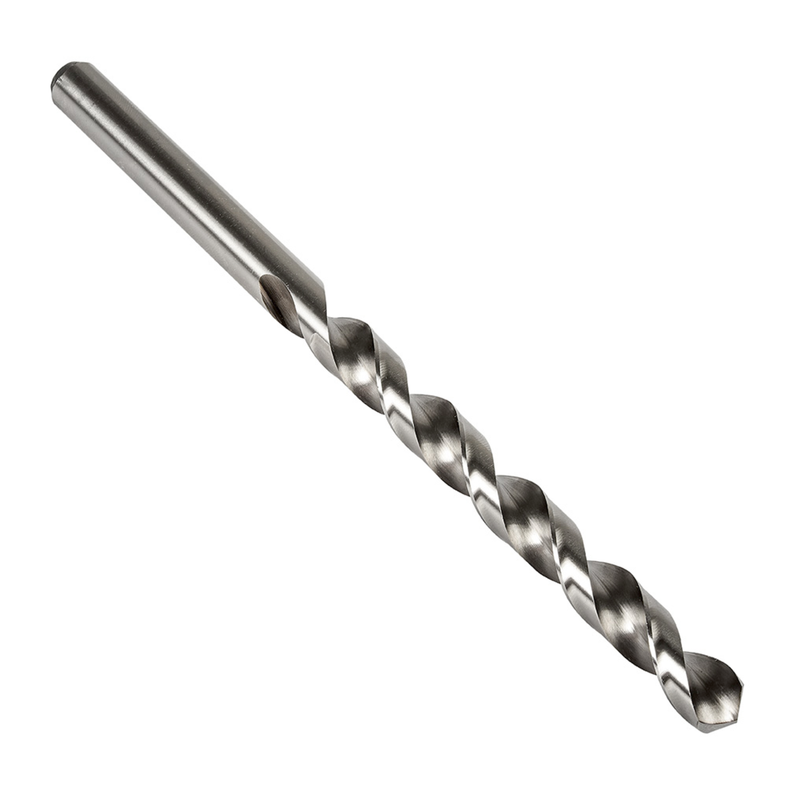

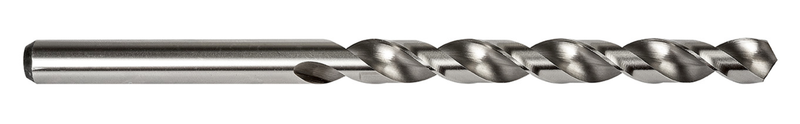

Foret série longue à queue cylindrique, diamètre 0,2500" (1/4) avec une longueur totale de 6.1/8" et une longueur de coupe de 3.3/4" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition brillante pour perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS1/4
GradeLumineux
Product Number5998982
Product FamilyR51FS

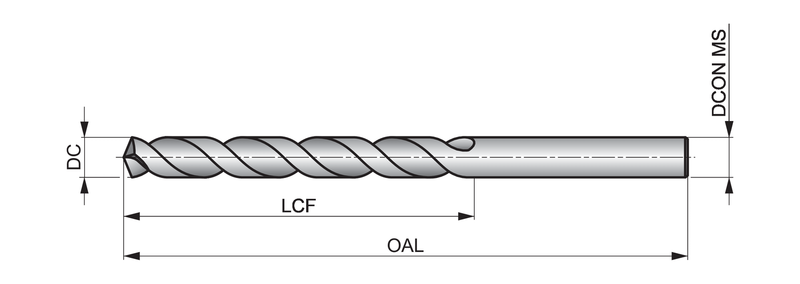

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)6.125"
Overall Length — mm (OAL)155.58 mm
Flute Length — in (LCF)3.75"
Flute Length — mm (LCF)95.25 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51516
File Type Download
R51FS1/4 — 3D Model STP Download
R51FS1/4 — Line Drawing PDF Download
