UGC PRE5998985
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.56 CAD - $12.56 CAD
$12.56 CAD
$12.56 CAD - $12.56 CAD
$12.56 CAD

Vendu en lots de : 12

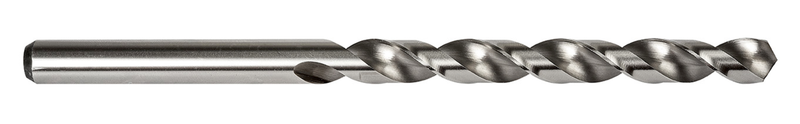

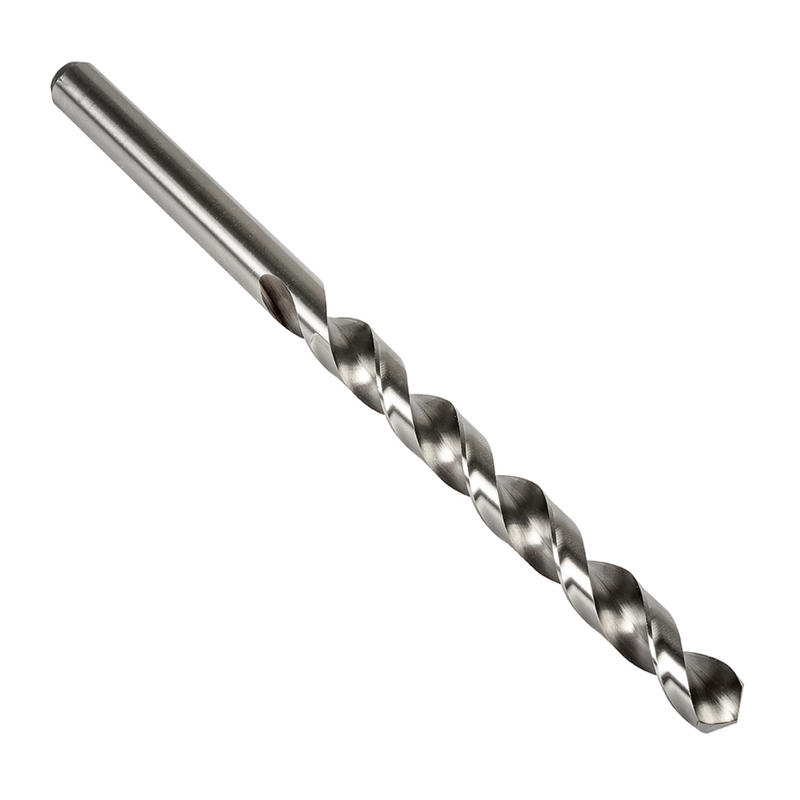

Foret série longue avec queue droite, diamètre 0,1250" (1/8) avec une longueur totale de 5,1/8" et une longueur de coupe de 2,3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS1/8
GradeLumineux
Product Number5998985
Product FamilyR51FS

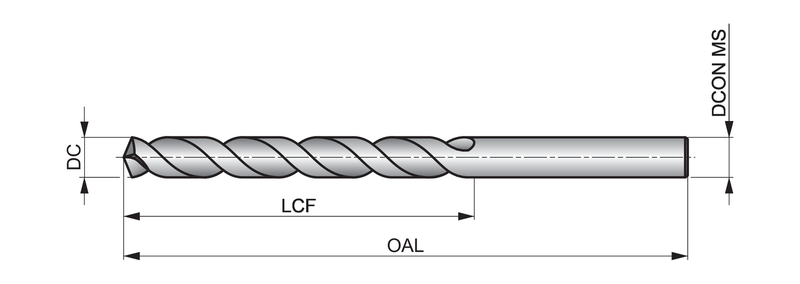

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)5.125"
Overall Length — mm (OAL)130.18 mm
Flute Length — in (LCF)2.75"
Flute Length — mm (LCF)69.85 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51508
File Type Download
R51FS1/8 — 3D Model STP Download
R51FS1/8 — Line Drawing PDF Download
