R511.1/8
R511.1/8
R511.1/8

R511.1/8

UGC PRE5998987
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.24 CAD - $175.24 CAD
$175.24 CAD
$175.24 CAD - $175.24 CAD
$175.24 CAD

Vendu en lots de : 1

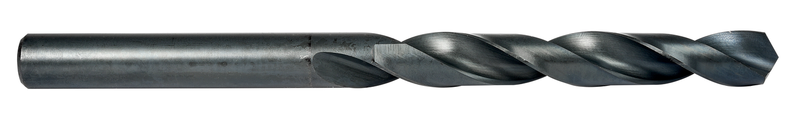

Foret série longue avec queue cylindrique, diamètre 1.1250" (1.1/8) avec une longueur totale de 11.3/4" et une longueur de coupe de 7.1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition trempée à la vapeur pour le perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R511.1/8
GradeTrempé à la vapeur
Product Number5998987
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)1.125"
Cutting Diameter — mm (DC)28.58 mm
Cutting Diameter — Fractional1,1/8
Overall Length — in (OAL)11.75"
Overall Length — mm (OAL)298.45 mm
Flute Length — in (LCF)7.125"
Flute Length — mm (LCF)180.98 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)1.125"
Connection Dia. — mm (DCON)28.58 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51108
File Type Download
R511.1/8 — 3D Model STP Download
R511.1/8 — Line Drawing PDF Download
