R51FS11/32
R51FS11/32
R51FS11/32

R51FS11/32

UGC PRE5998989
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.87 CAD - $19.87 CAD
$19.87 CAD
$19.87 CAD - $19.87 CAD
$19.87 CAD

Vendu en lots de : 6

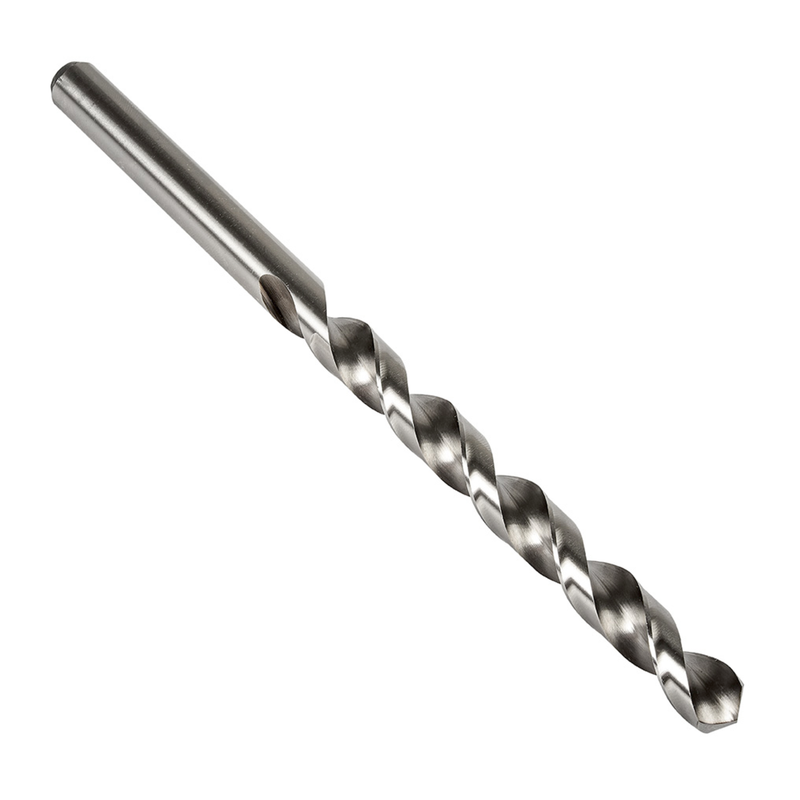

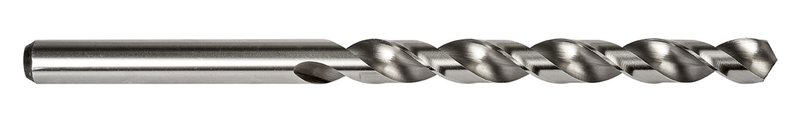

Foret long à queue cylindrique, diamètre 0,3438" (11/32) avec une longueur totale de 6.1/2" et une longueur de goujure de 4.1/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS11/32
GradeLumineux
Product Number5998989
Product FamilyR51FS

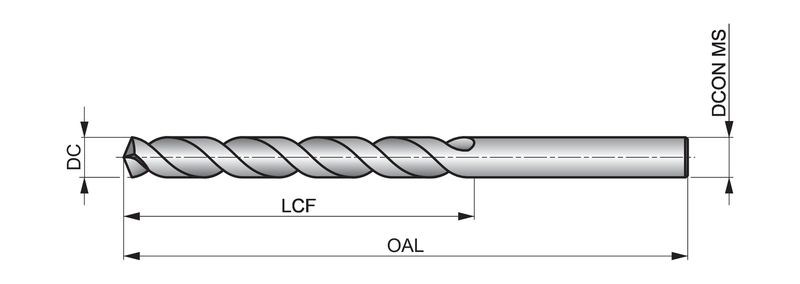

Dimensions
Cutting Diameter — in (DC)0.3438"
Cutting Diameter — mm (DC)8.73 mm
Cutting Diameter — Fractional11/32
Overall Length — in (OAL)6.5"
Overall Length — mm (OAL)165.1 mm
Flute Length — in (LCF)4.125"
Flute Length — mm (LCF)104.78 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.3438"
Connection Dia. — mm (DCON)8.73 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51522
File Type Download
R51FS11/32 — 3D Model STP Download
R51FS11/32 — Line Drawing PDF Download
