R51FS13/64
R51FS13/64
R51FS13/64

R51FS13/64

UGC PRE5999002
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.43 CAD - $16.43 CAD
$16.43 CAD
$16.43 CAD - $16.43 CAD
$16.43 CAD

Vendu en lots de : 12

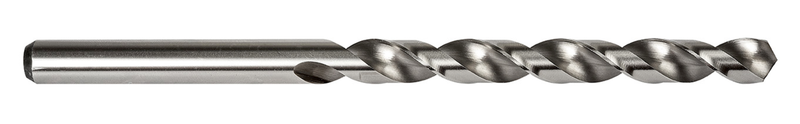

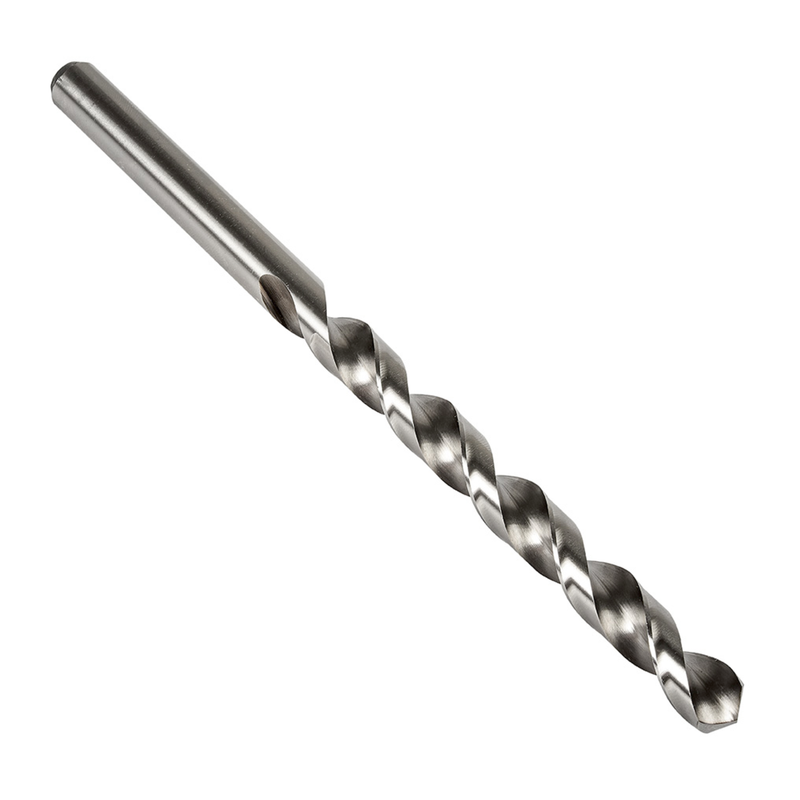

Foret série longue à queue cylindrique, diamètre 0,2031" (13/64) avec une longueur totale de 6" et une longueur de coupe de 3.5/8" selon la norme ANSI avec un angle de pointe de 118°, HSS finition brillante pour un perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS13/64
GradeLumineux
Product Number5999002
Product FamilyR51FS

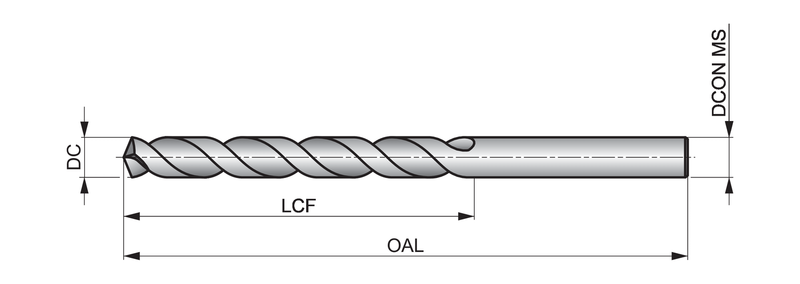

Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.625"
Flute Length — mm (LCF)92.08 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.2031"
Connection Dia. — mm (DCON)5.16 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51513
File Type Download
R51FS13/64 — 3D Model STP Download
R51FS13/64 — Line Drawing PDF Download
