R511.3/16
R511.3/16
R511.3/16

R511.3/16

UGC PRE5999004
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$206.31 CAD - $206.31 CAD
$206.31 CAD
$206.31 CAD - $206.31 CAD
$206.31 CAD

Vendu en lots de : 1

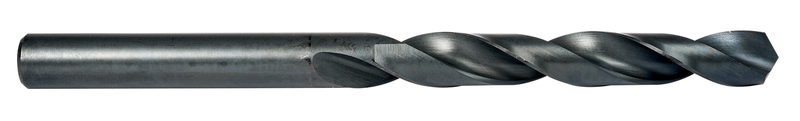

Foret long à queue cylindrique, diamètre 1,1875" (1.3/16) avec une longueur totale de 12" et une longueur de coupe de 7.3/8" selon la norme ANSI avec un angle de pointe de 118°, HSS avec finition trempée à la vapeur pour un perçage 6xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R511.3/16
GradeTrempé à la vapeur
Product Number5999004
Product FamilyR51
Dimensions
Cutting Diameter — in (DC)1.1875"
Cutting Diameter — mm (DC)30.16 mm
Cutting Diameter — Fractional1. 3/16
Overall Length — in (OAL)12.0"
Overall Length — mm (OAL)304.8 mm
Flute Length — in (LCF)7.375"
Flute Length — mm (LCF)187.33 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)1.1875"
Connection Dia. — mm (DCON)30.16 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51112
File Type Download
R511.3/16 — 3D Model STP Download
R511.3/16 — Line Drawing PDF Download
