R51FS15/64
R51FS15/64
R51FS15/64

R51FS15/64

UGC PRE5999009
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.83 CAD - $18.83 CAD
$18.83 CAD
$18.83 CAD - $18.83 CAD
$18.83 CAD

Vendu en lots de : 12

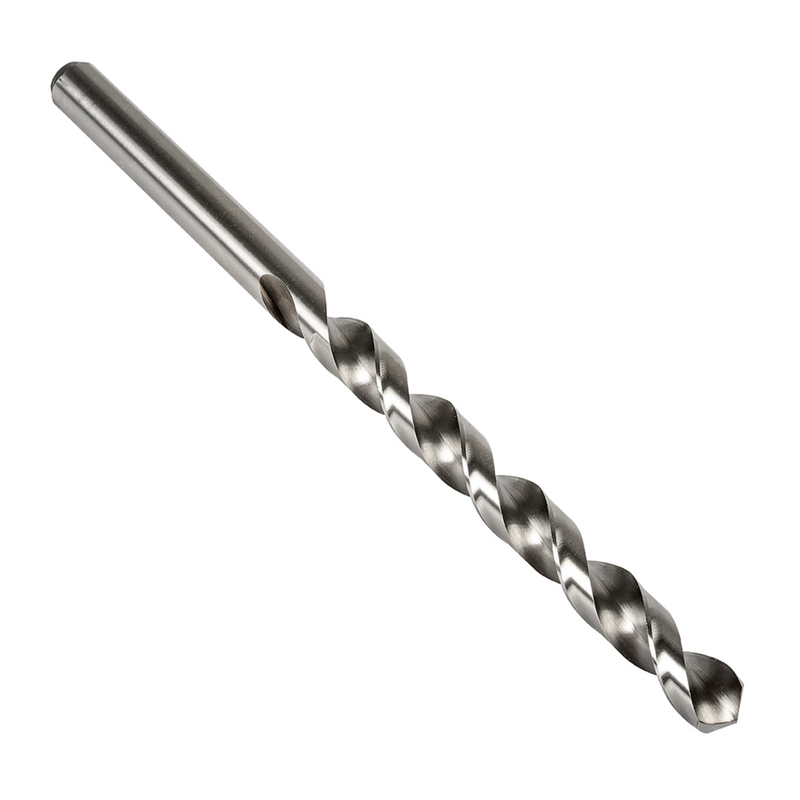

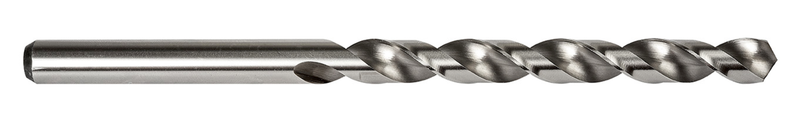

Foret série longue avec queue cylindrique, diamètre 0,2344" (15/64) avec une longueur totale de 6,1/8" et une longueur de coupe de 3,3/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage de 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS15/64
GradeLumineux
Product Number5999009
Product FamilyR51FS

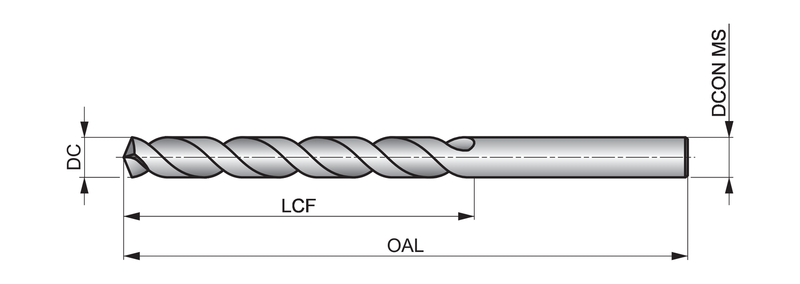

Dimensions
Cutting Diameter — in (DC)0.2344"
Cutting Diameter — mm (DC)5.95 mm
Cutting Diameter — Fractional15/64
Overall Length — in (OAL)6.125"
Overall Length — mm (OAL)155.58 mm
Flute Length — in (LCF)3.75"
Flute Length — mm (LCF)95.25 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.2344"
Connection Dia. — mm (DCON)5.95 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51515
File Type Download
R51FS15/64 — 3D Model STP Download
R51FS15/64 — Line Drawing PDF Download
