R51FS19/64
R51FS19/64
R51FS19/64

R51FS19/64

UGC PRE5999017
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.93 CAD - $18.93 CAD
$18.93 CAD
$18.93 CAD - $18.93 CAD
$18.93 CAD

Vendu en lots de : 6

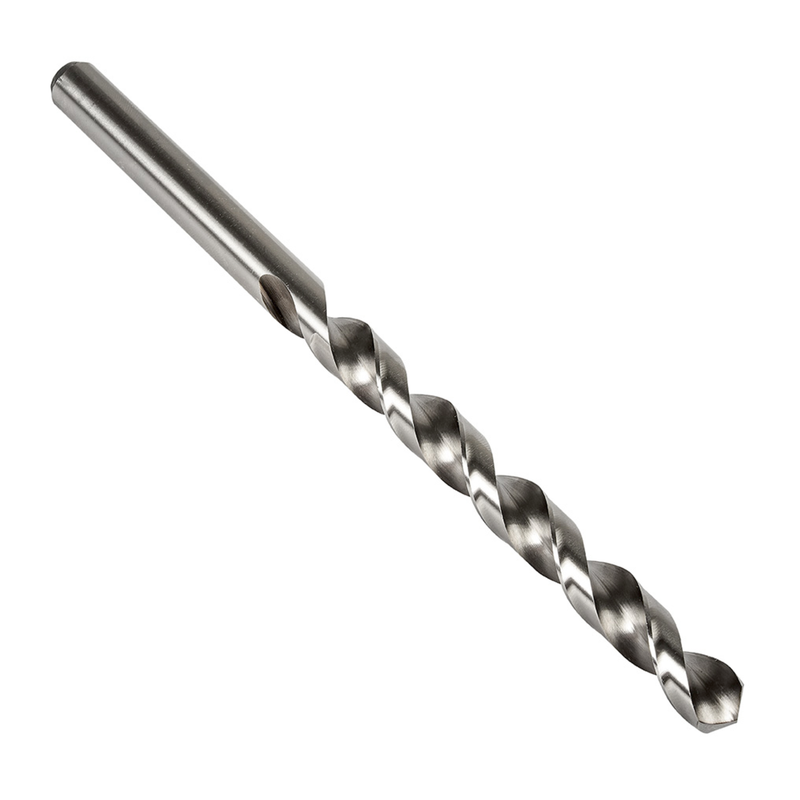

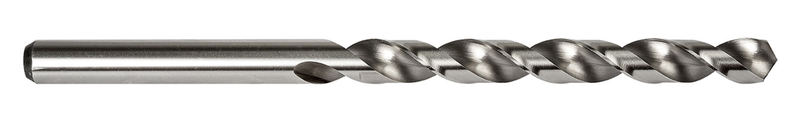

Foret série longue avec queue cylindrique, diamètre 0,2969" (19/64) avec une longueur totale de 6,3/8" et une longueur de coupe de 4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS19/64
GradeLumineux
Product Number5999017
Product FamilyR51FS

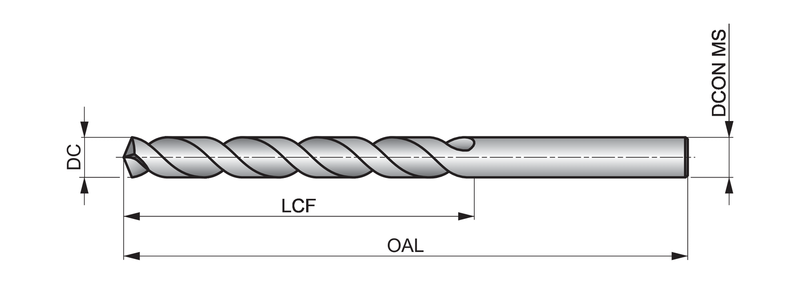

Dimensions
Cutting Diameter — in (DC)0.2969"
Cutting Diameter — mm (DC)7.54 mm
Cutting Diameter — Fractional19/64
Overall Length — in (OAL)6.375"
Overall Length — mm (OAL)161.93 mm
Flute Length — in (LCF)4.0"
Flute Length — mm (LCF)101.6 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.2969"
Connection Dia. — mm (DCON)7.54 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51519
File Type Download
R51FS19/64 — 3D Model STP Download
R51FS19/64 — Line Drawing PDF Download
