R51FS23/64
R51FS23/64
R51FS23/64

R51FS23/64

UGC PRE5999027
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.14 CAD - $25.14 CAD
$25.14 CAD
$25.14 CAD - $25.14 CAD
$25.14 CAD

Vendu en lots de : 6

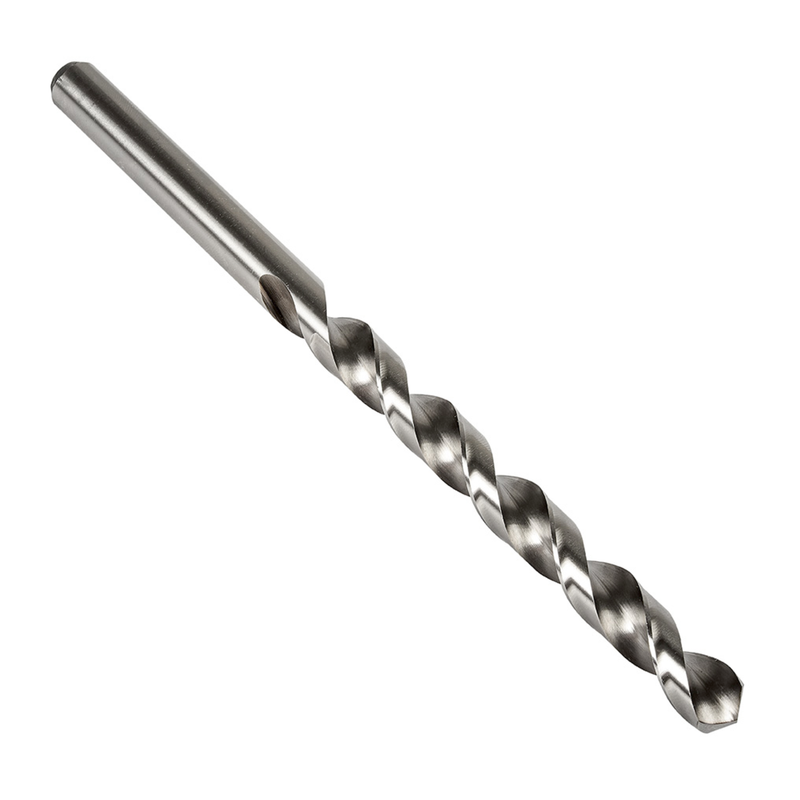

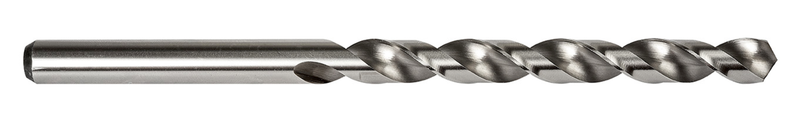

Foret série longue avec queue cylindrique, diamètre 0,3594" (23/64) avec une longueur totale de 6,3/4" et une longueur de coupe de 4,1/4" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS23/64
GradeLumineux
Product Number5999027
Product FamilyR51FS

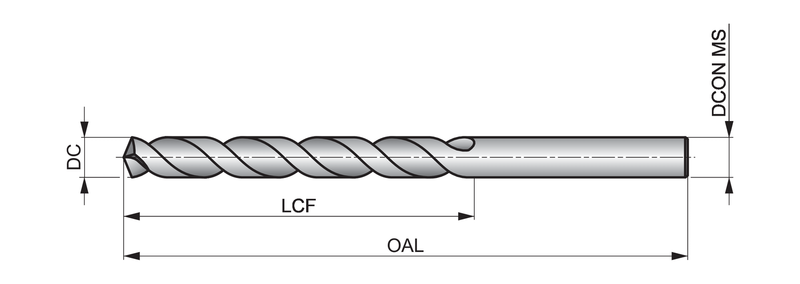

Dimensions
Cutting Diameter — in (DC)0.3594"
Cutting Diameter — mm (DC)9.13 mm
Cutting Diameter — Fractional23/64
Overall Length — in (OAL)6.75"
Overall Length — mm (OAL)171.45 mm
Flute Length — in (LCF)4.25"
Flute Length — mm (LCF)107.95 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.3594"
Connection Dia. — mm (DCON)9.13 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51523
File Type Download
R51FS23/64 — 3D Model STP Download
R51FS23/64 — Line Drawing PDF Download
