R51FS27/64
R51FS27/64
R51FS27/64

R51FS27/64

UGC PRE5999034
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.33 CAD - $30.33 CAD
$30.33 CAD
$30.33 CAD - $30.33 CAD
$30.33 CAD

Vendu en lots de : 6

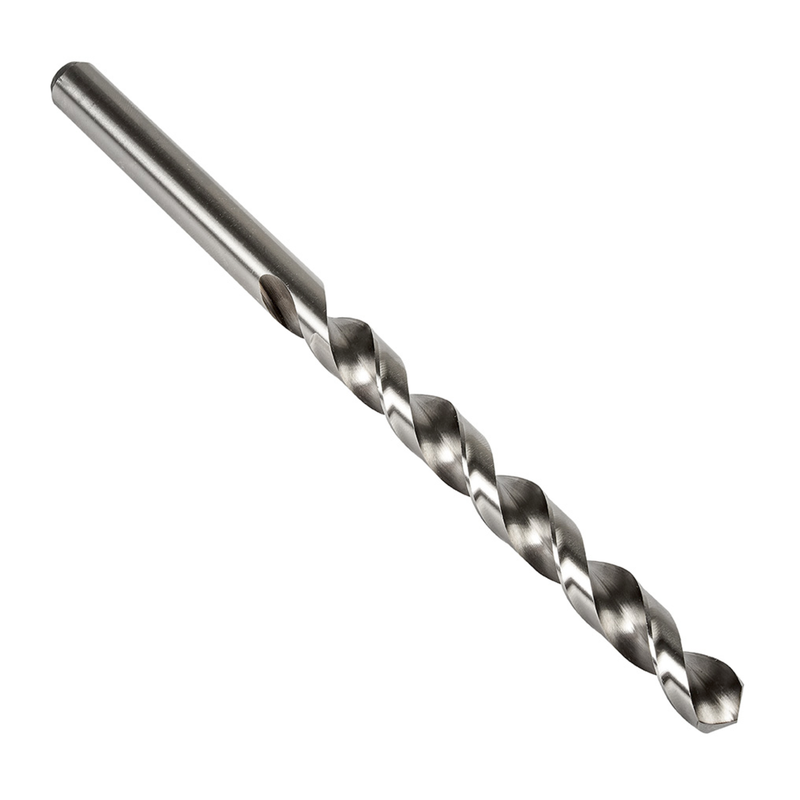

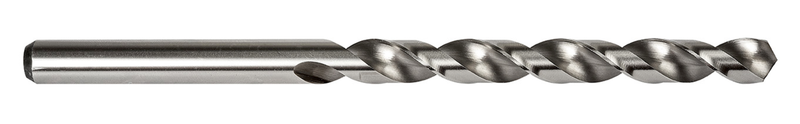

Foret long à queue cylindrique, diamètre 0,4219" (27/64), longueur totale 7,1/4" et longueur de goujure 4,5/8" selon la norme ANSI avec un angle de pointe de 118°, en HSS, finition brillante pour un perçage 6xD sans débourrage dans les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R51FS27/64
GradeLumineux
Product Number5999034
Product FamilyR51FS

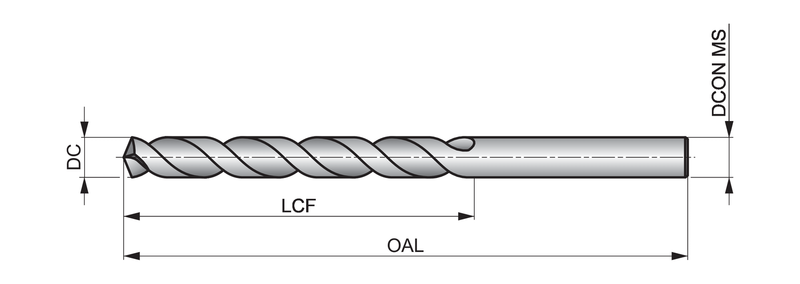

Dimensions
Cutting Diameter — in (DC)0.4219"
Cutting Diameter — mm (DC)10.72 mm
Cutting Diameter — Fractional27/64
Overall Length — in (OAL)7.25"
Overall Length — mm (OAL)184.15 mm
Flute Length — in (LCF)4.625"
Flute Length — mm (LCF)117.48 mm
Length × Diameter Ratio6
Connection Dia. — in (DCON)0.4219"
Connection Dia. — mm (DCON)10.72 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number51527
File Type Download
R51FS27/64 — 3D Model STP Download
R51FS27/64 — Line Drawing PDF Download
