R15BT
R15BT
R15BT

R15BT

UGC PRE5999133
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.97 CAD - $10.97 CAD
$10.97 CAD
$10.97 CAD - $10.97 CAD
$10.97 CAD

Vendu en lots de : 6

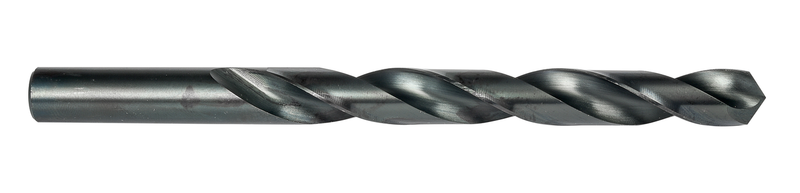

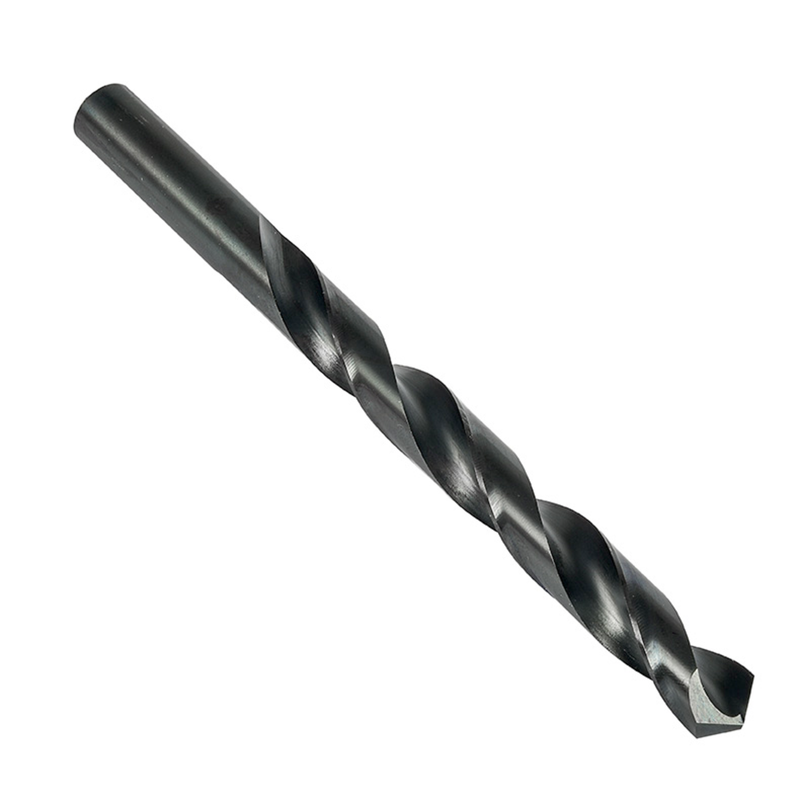

Foret série courte à queue cylindrique, diamètre 0,3580" (T), longueur totale de 4,7/8" et longueur de coupe de 3,1/2" selon la norme NAS907 Type B, avec pointe à 135° à éclatement de copeaux pour usage intensif, HSS avec finition trempée à la vapeur pour perçage 4xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R15BT
GradeTrempé à la vapeur
Product Number5999133
Product FamilyR15B
Dimensions
Cutting Diameter — in (DC)0.358"
Cutting Diameter — mm (DC)9.09 mm
Overall Length — in (OAL)4.875"
Overall Length — mm (OAL)123.83 mm
Flute Length — in (LCF)3.5"
Flute Length — mm (LCF)88.9 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.358"
Connection Dia. — mm (DCON)9.09 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number15220
File Type Download
R15BT — 3D Model STP Download
R15BT — Line Drawing PDF Download
