R41N60
R41N60
R41N60

R41N60

UGC PRE5999309
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.07 CAD - $2.07 CAD
$2.07 CAD
$2.07 CAD - $2.07 CAD
$2.07 CAD

Vendu en lots de : 12

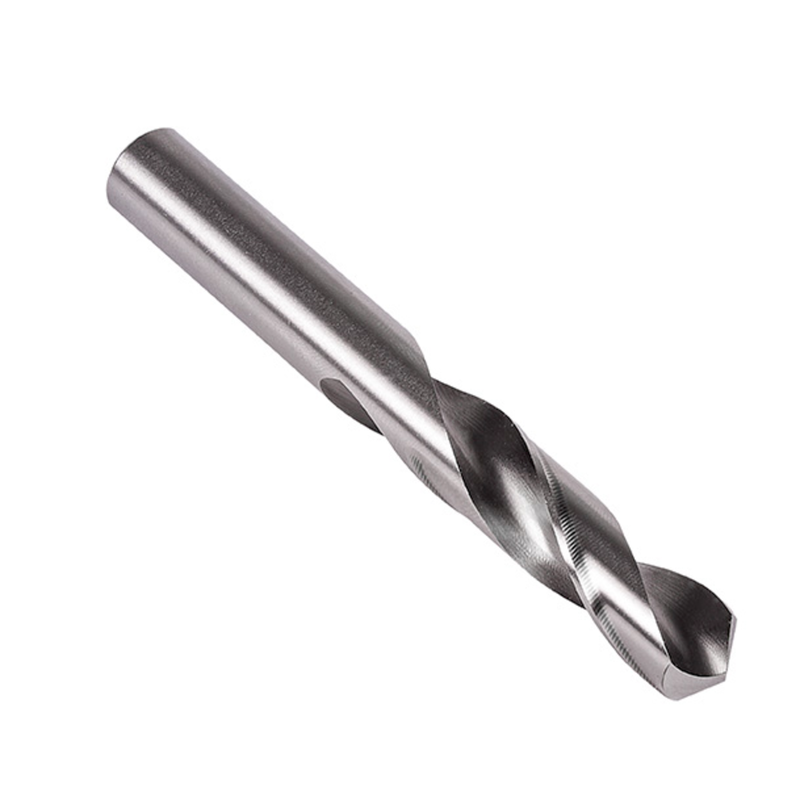

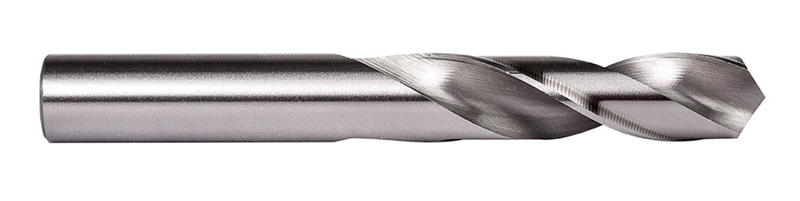

Foret court à queue cylindrique, diamètre 0,0400" (N60) avec une longueur totale de 1,3/8" et une longueur de coupe de 1/2" selon la norme ANSI avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage de 2,5xD sans débourrage dans l'acier, la fonte et les matériaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R41N60
GradeLumineux
Product Number5999309
Product FamilyR41
Dimensions
Cutting Diameter — in (DC)0.04"
Cutting Diameter — mm (DC)1.02 mm
Overall Length — in (OAL)1.375"
Overall Length — mm (OAL)34.93 mm
Flute Length — in (LCF)0.5"
Flute Length — mm (LCF)12.7 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.04"
Connection Dia. — mm (DCON)1.02 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number41060
File Type Download
R41N60 — 3D Model STP Download
R41N60 — Line Drawing PDF Download
