R42CK
R42CK

R42CK

UGC PRE5999386
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.36 CAD - $6.36 CAD
$6.36 CAD
$6.36 CAD - $6.36 CAD
$6.36 CAD

Vendu en lots de : 12

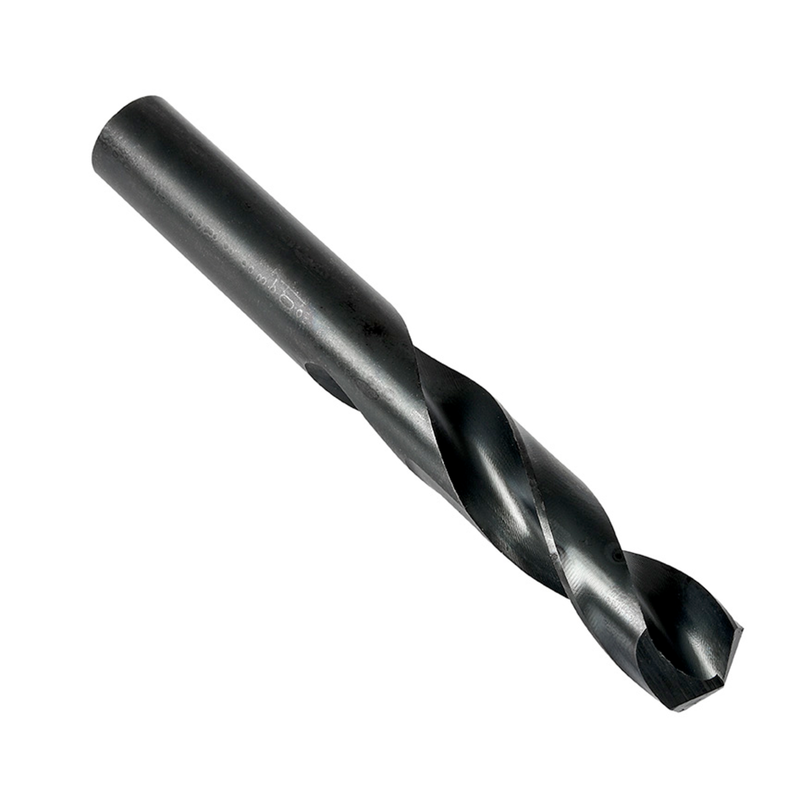

Foret court à queue cylindrique, diamètre 0,2810" (K) avec une longueur totale de 2.11/16" et une longueur utile de 1.1/2" selon la norme NAS907 Type C avec une pointe à affûtage en croix à 135° renforcée, HSS avec finition trempée vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R42CK
GradeTrempé à la vapeur
Product Number5999386
Product FamilyR42C
Dimensions
Cutting Diameter — in (DC)0.281"
Cutting Diameter — mm (DC)7.14 mm
Overall Length — in (OAL)2.6875"
Overall Length — mm (OAL)68.26 mm
Flute Length — in (LCF)1.5"
Flute Length — mm (LCF)38.1 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.281"
Connection Dia. — mm (DCON)7.14 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number42811
File Type Download
R42CK — 3D Model STP Download
R42CK — Line Drawing PDF Download
