R40C1/2
R40C1/2
R40C1/2

R40C1/2

UGC PRE5999400
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.10 CAD - $15.10 CAD
$15.10 CAD
$15.10 CAD - $15.10 CAD
$15.10 CAD

Vendu en lots de : 6

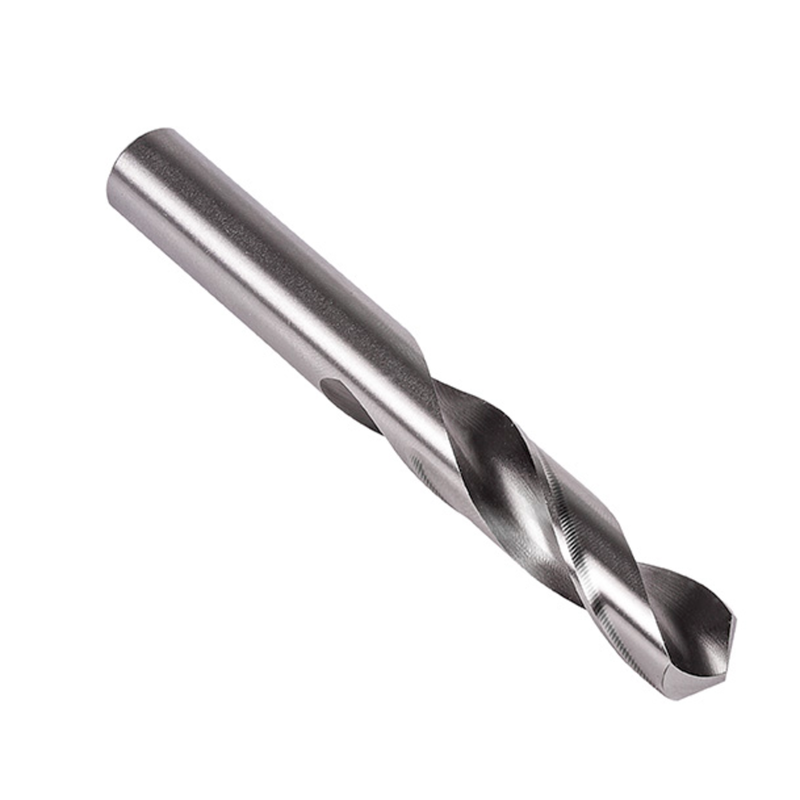

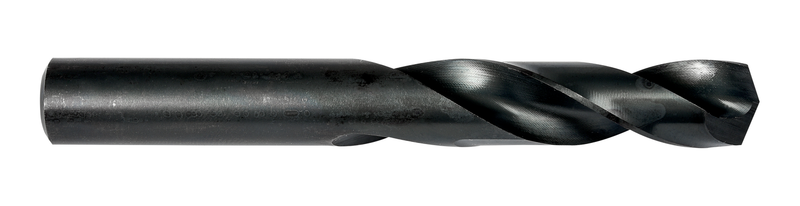

Foret court à queue cylindrique, diamètre 0,5000" (1/2) d'une longueur totale de 3.3/4" et d'une longueur de coupe de 2.1/4" selon la norme NAS907 Type C avec pointe fendue à 135° pour usage intensif, HSS avec finition trempée à la vapeur pour perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R40C1/2
GradeTrempé à la vapeur
Product Number5999400
Product FamilyR40C
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.75"
Overall Length — mm (OAL)95.25 mm
Flute Length — in (LCF)2.25"
Flute Length — mm (LCF)57.15 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number40832
File Type Download
R40C1/2 — 3D Model STP Download
R40C1/2 — Line Drawing PDF Download
