UGC PRE5999402
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.00 CAD - $7.00 CAD
$7.00 CAD
$7.00 CAD - $7.00 CAD
$7.00 CAD

Vendu en lots de : 6

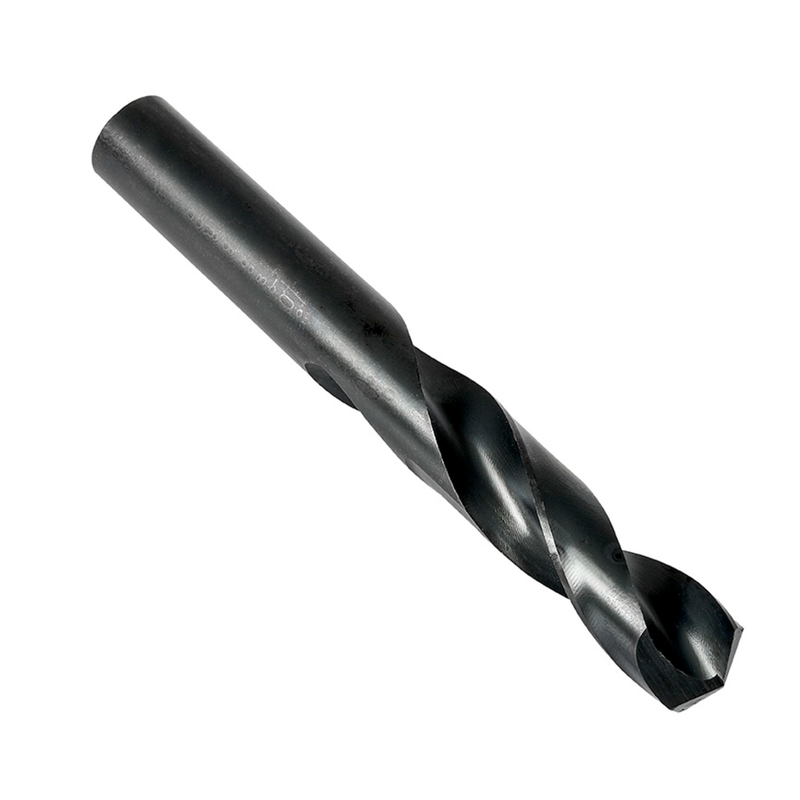

Foret court avec queue cylindrique, diamètre 0,3160" (O), longueur totale de 2.15/16" et longueur utile de 1.11/16" selon la norme NAS907 Type C avec pointe fendue robuste à 135°, en acier rapide (HSS) avec finition trempée à la vapeur pour un perçage jusqu'à 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R42CO
GradeTrempé à la vapeur
Product Number5999402
Product FamilyR42C
Dimensions
Cutting Diameter — in (DC)0.316"
Cutting Diameter — mm (DC)8.03 mm
Overall Length — in (OAL)2.9375"
Overall Length — mm (OAL)74.61 mm
Flute Length — in (LCF)1.6875"
Flute Length — mm (LCF)42.86 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.316"
Connection Dia. — mm (DCON)8.03 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNAS907
Reference Numbers
EDP Number42815
File Type Download
R42CO — 3D Model STP Download
R42CO — Line Drawing PDF Download
